PUDU D5 Series: The Next Generation of Industry-Grade Autonomous Quadruped Robots
Pudu Robotics introduces the D5 and D5-W — powerful autonomous quadruped robots engineered for complex outdoor environments, industrial inspection, security patrol, and large-scale logistics operations. Featuring NVIDIA Orin, dual 360° LiDAR, IP67 rating, and 275 TOPS AI performance.
PUDU D5 (Legs)
The full-leg configuration delivers maximum terrain adaptability. It handles stairs, steep slopes and uneven surfaces using advanced bionic gait algorithms and IMU-driven stabilisation for smooth continuous operation.

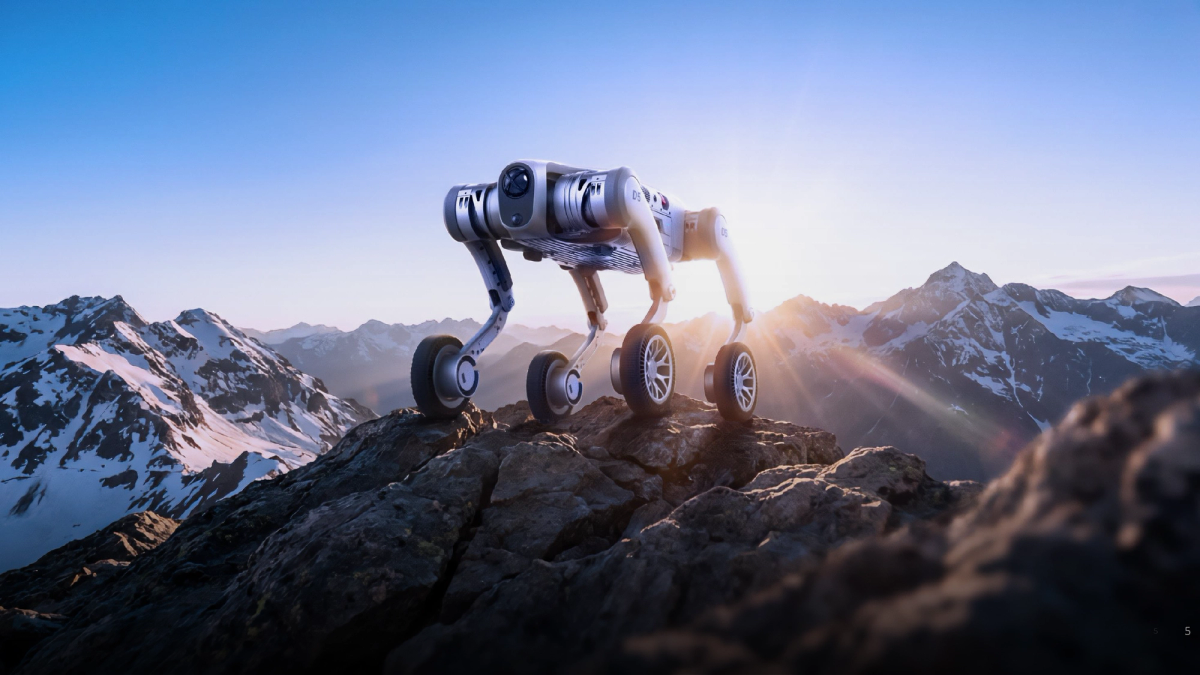

PUDU D5-W (Hybrid)
The wheeled hybrid configuration optimises performance across mixed surfaces, switching seamlessly between efficient wheeled drive and dynamic legged mobility for maximum operational flexibility.
Engineered for real-world challenges
Advanced autonomous intelligence
🧠Automotive-grade computing
A dual-processor architecture pairing NVIDIA Orin with RK3588 delivers 275 TOPS for real-time SLAM, 3D reconstruction and autonomous path planning.
🏔️Terrain mobility
Hybrid wheel-leg locomotion reaches 5 m/s while clearing 30° inclines and 25 cm obstacles under IMU stabilisation.
👁️360° perception
Two 192-line spherical LiDARs and four fisheye cameras build dense 3D point clouds for centimetre-accurate localisation.
🎤Natural interaction
Supports over 10 hand gestures and carries a 6-microphone array with AI noise suppression for reliable voice control in industrial settings.
🔋Long runtime
A high-strength aluminium structure carries a steady 30 kg payload with over 2 hours of continuous operation and 14 km of range per charge.
❄️All-weather durability
IP67 protection with cold start at −10 °C and dependable operation from −20 °C to 55 °C in all conditions.
Built for demanding environments
The D5 series runs complete autonomous workflows — departure, patrol, obstacle negotiation and return to the charging dock — across a range of industrial scenarios.
Application areas
- ✓Industrial inspection
- ✓Security patrol
- ✓Logistics support
- ✓Airport operations
- ✓Metro systems
- ✓Power plants
- ✓Emergency response
- ✓Research & development
- ✓Campus surveillance
- ✓Warehouse monitoring
The PUDU D5 series marks a significant step forward in our vision for robotics. The D5 successfully brings advanced autonomy, robust mobility and intelligent interaction to complex outdoor and industrial scenarios.
— Felix Zhang, Founder & CEO, Pudu Robotics
Full specifications
| Specification | Value |
|---|---|
| Processing unit | NVIDIA Orin + RK3588 (275 TOPS) |
| LiDAR system | Two 192-line spherical LiDARs |
| Camera array | 4× 120° fisheye cameras |
| Audio system | 6-microphone array with AI noise suppression |
| Top speed | 5 m/s |
| Payload capacity | 30 kg |
| Navigation coverage | Up to 1,000,000 m² |
| Range per charge | 14 km |
| Gradeability | Up to 30° |
| Obstacle clearance | 25 cm |
| Runtime at full load | Over 2 hours |
| Ingress protection | IP67 |
| Operating temperature | −20 °C to +55 °C |
| Cold-start capability | −10 °C |
| Gesture control | 10+ commands (start, stop, follow, recall, etc.) |
Interested in the PUDU D5 series?
Find out how autonomous quadruped robots can transform your industrial operations, security and logistics.
