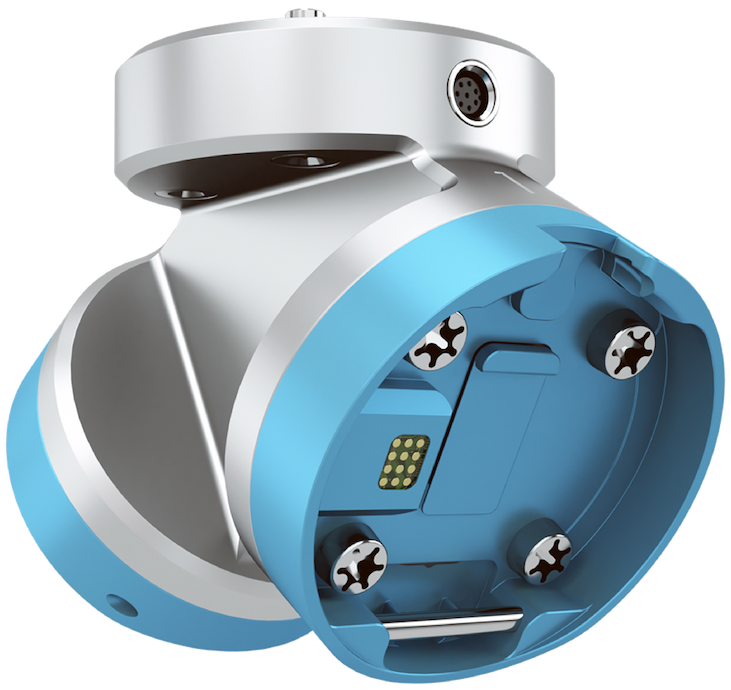

Dual Quick Changer
Carries two end effectors at once for dual gripping, rated for 30 kg combined payload.
The Dual Quick Changer equips a robot with two end-of-arm tools at the same time, so both can be used within a single cycle. In machine tending that means picking the finished part and loading the next blank without a tool change — typically improving productivity by 50 % or more. It keeps the regular Quick Changer's fast, screwless tool swapping and low built height.
Key Features
- Two end-of-arm tools mounted simultaneously
- Improves productivity by 50 % or more in dual-gripping cycles
- Combined payload up to 30 kg, permissible force 600 N
- Low built-in height and weight
- ±0.02 mm repeatability
Specifications
| Rated payload | 30 kg |
| Permissible force | 600 N |
| Permissible torque | 40 Nm |
| Repeatability | ±0.02 mm |
| IP classification | IP67 |
| Operating life (tool change) | 5,000 cycles |
| Weight | 0.41 kg |
| Flange standard | ISO 9409-1 |
| Operating temperature | 0–50 °C |
| Current version | Dual QC v3 (item 109878) |
Applications
CNC machine tending
Material handling
Assembly
Material removal
Palletizing
