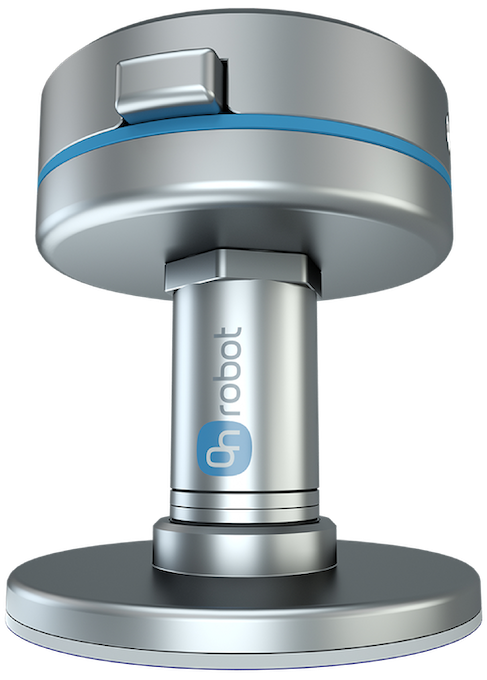

Gecko Gripper
Adhesive gripper using van der Waals forces — no marks, no air, no electricity.
Inspired by the gecko's foot, this gripper holds flat, smooth or perforated workpieces with micro-scale adhesive pads that rely on van der Waals forces. It needs no cables, electricity, air or programming, and leaves no marks even on high-shine surfaces — removing the cleaning step that suction grippers force downstream. Available in SP1, SP3 and SP5 variants named after their payload in kilograms.
Key Features
- Gecko-inspired adhesion — no electricity or air supply required
- Three sizes: SP1 (1 kg), SP3 (3 kg) and SP5 (5 kg)
- No-mark gripping, even on highly polished surfaces
- Grips perforated parts such as PCBs, aluminium mesh and head gaskets
- Compact single-pad design reaches into tight spaces
Specifications
| Maximum payload (SP1 / SP3 / SP5) | 1 kg / 3 kg / 5 kg |
| Preload minimum (SP1 / SP3 / SP5) | 3 N / 8 N / 12 N |
| Preload maximum (SP1 / SP3 / SP5) | 11 N / 32 N / 46 N |
| Detachment time | 100–1000 ms, robot-speed dependent |
| Pad material | Proprietary silicone blend |
| Pad change-out interval | ~200,000 cycles |
| Pad recovery | 100 % |
| IP classification | IP42 |
| Dimensions (H × W) | 69 × 71 mm |
| Weight (SP1 / SP3 / SP5) | 0.267 kg / 0.297 kg / 0.318 kg |
| Operating temperature | 0–50 °C |
| Suitable surfaces | Matte to highly polished; smoother needs less preload |
Applications
Material handling
Pick and place
Glass and panel handling
Electronics handling
PCB handling
