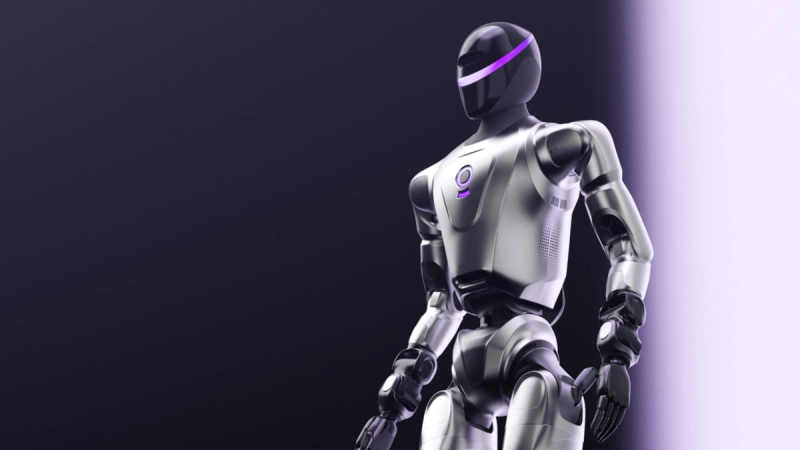

MagicBot X1
Full-size humanoid — 180 cm, 31 DOF, ≥400 N·m joints, hot-swappable dual battery

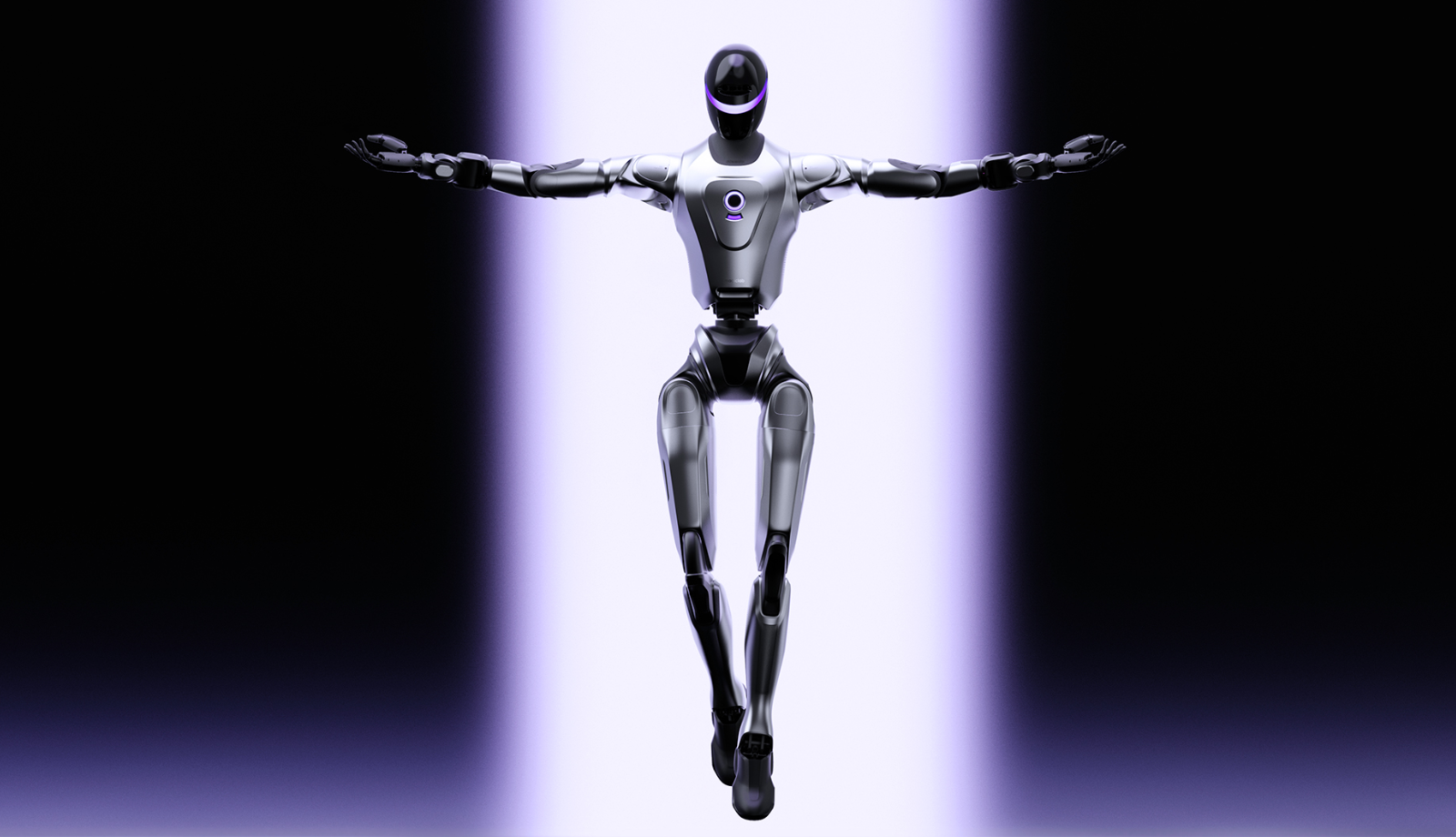

Full-size humanoid robot with 31 active degrees of freedom and newly developed joint modules delivering ≥350 N·m peak and ≥400 N·m maximum torque, with the range of motion in the key joints widened by ≥50 %. An aerospace-grade chassis of titanium alloy, lightweight aluminium alloy and high-strength engineering plastics is paired with a hot-swappable dual-battery system for continuous 24/7 operation. The X1 Ultra developer edition adds an unlocked developer CPU, AI compute up to NVIDIA Jetson AGX Thor (2070 TOPS) and support for secondary development.
Key Features

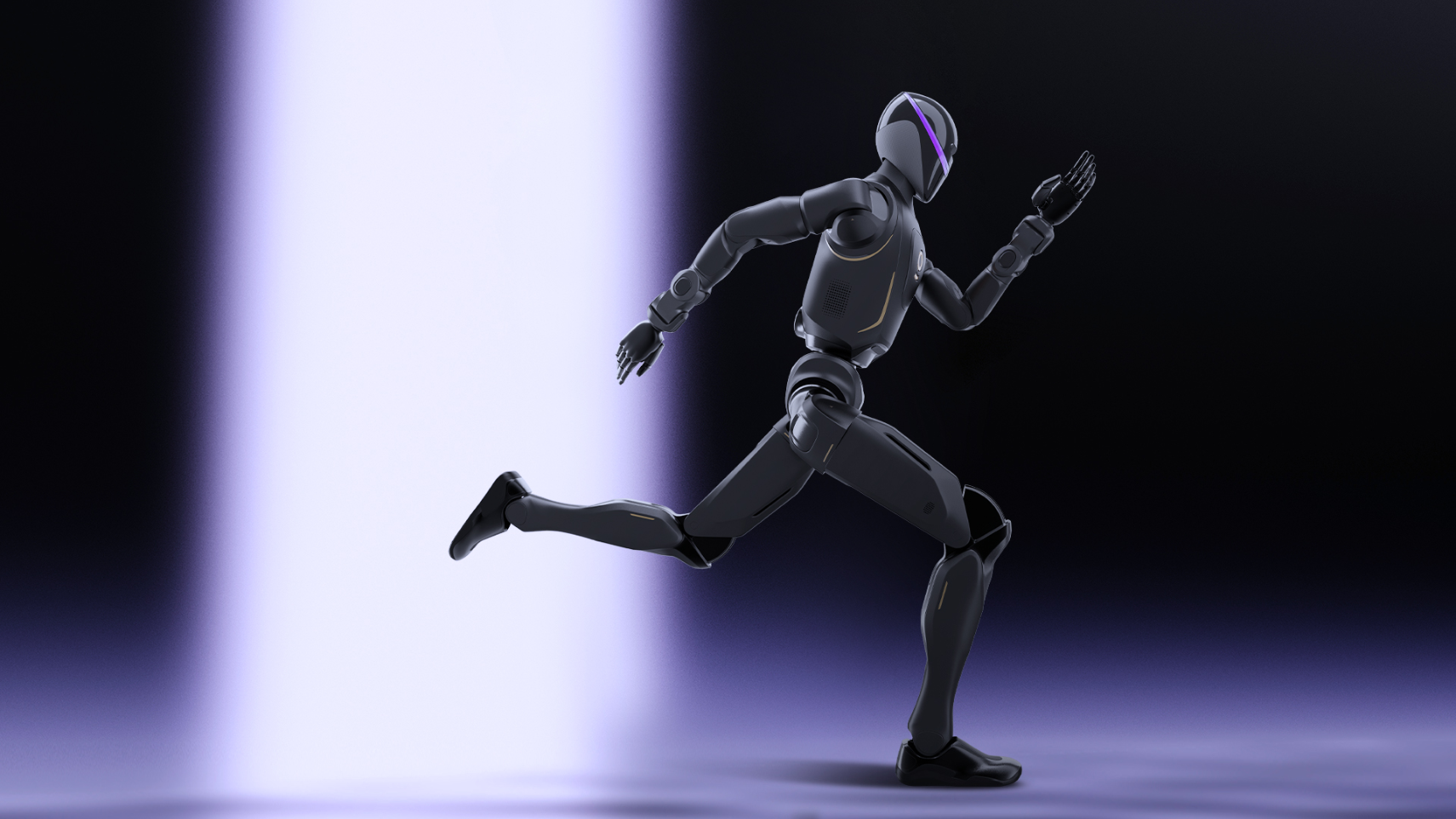

- Self-developed joint modules with ≥350 N·m peak and ≥400 N·m maximum torque
- Topology-optimised structure for more strength at lower weight

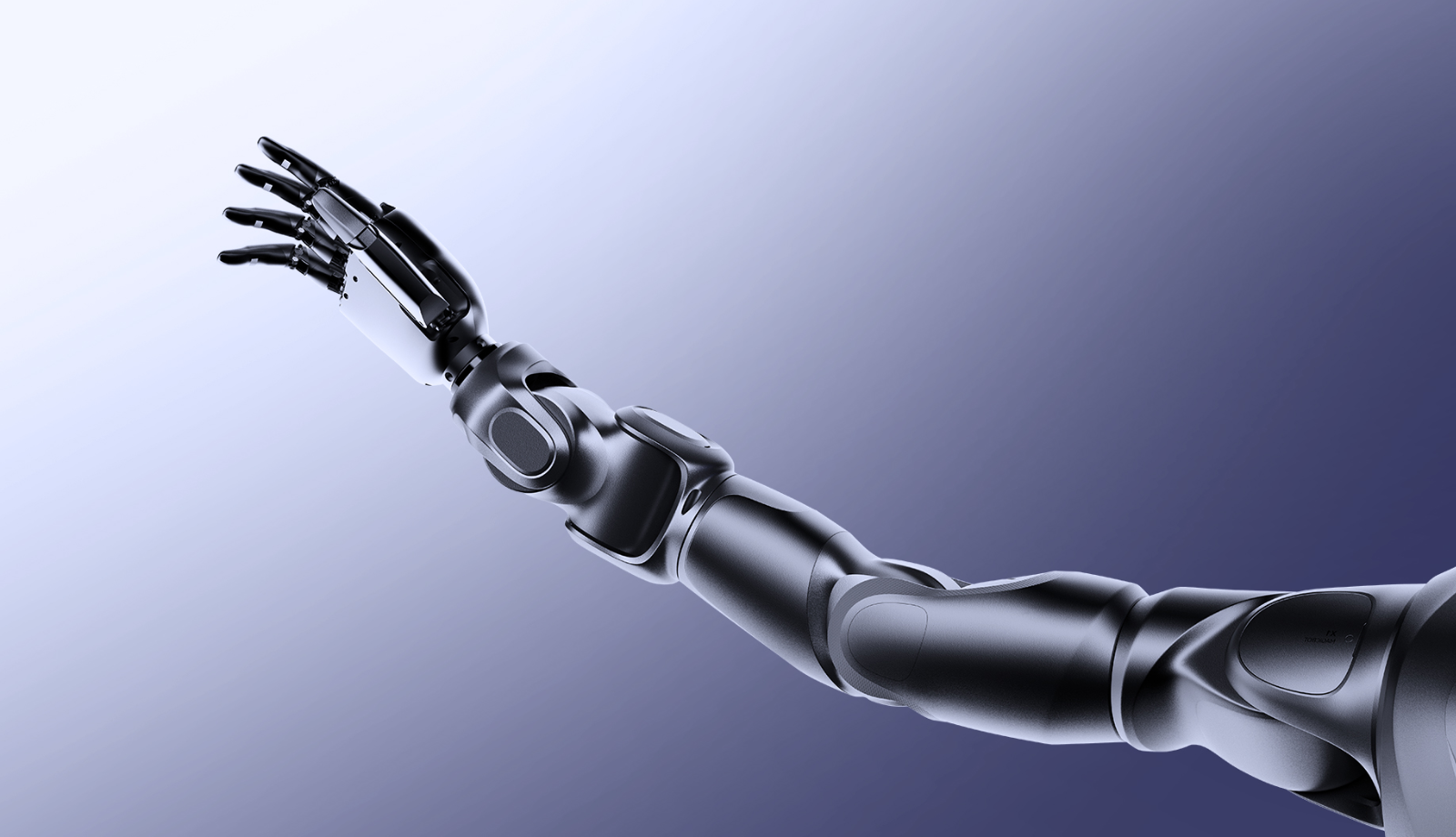

- Range of motion in the key joints increased by ≥50 % for stiffness-free movement

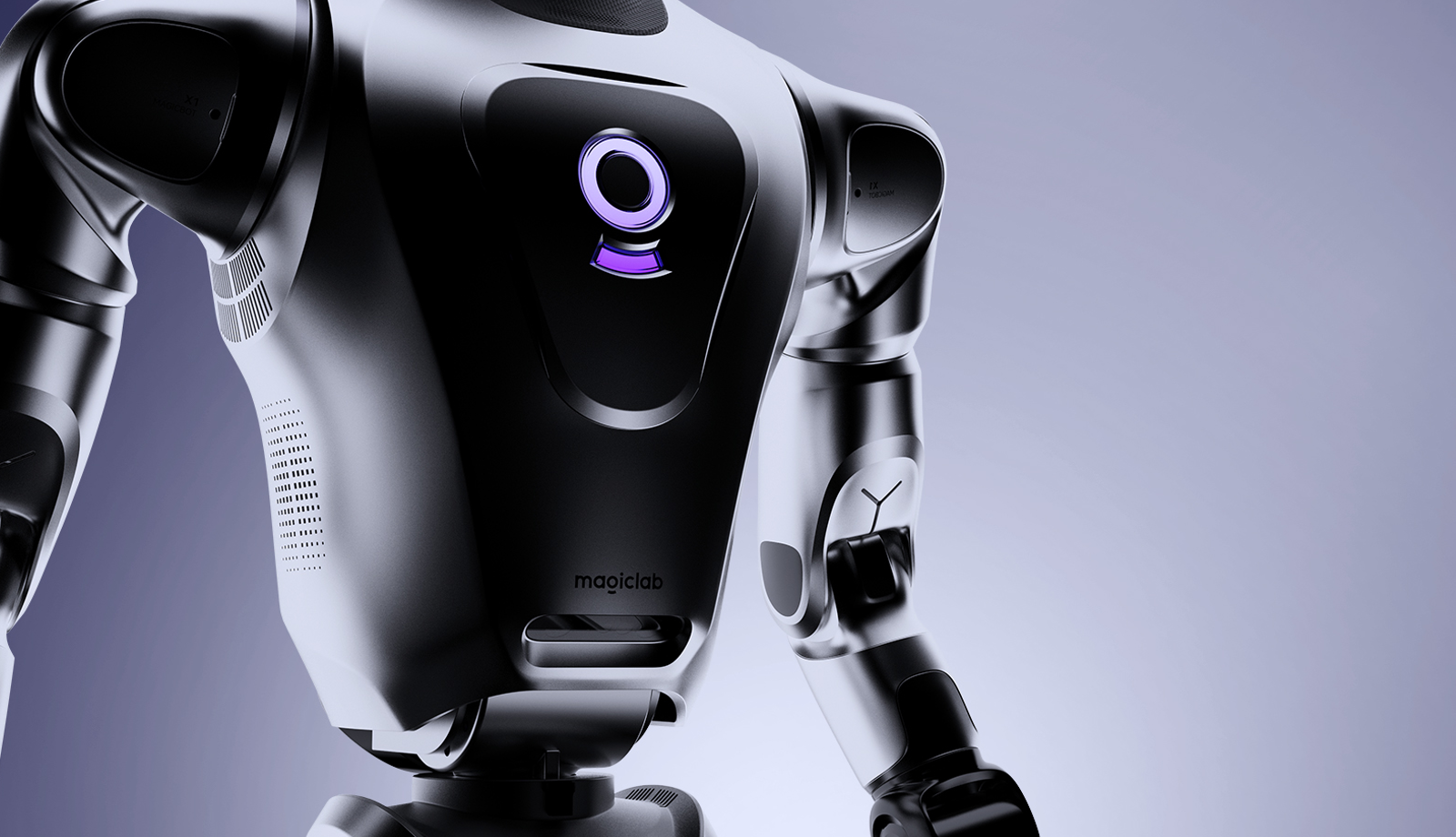

- Aerospace-grade composite chassis: titanium alloy, magnesium-aluminium alloy and TPU

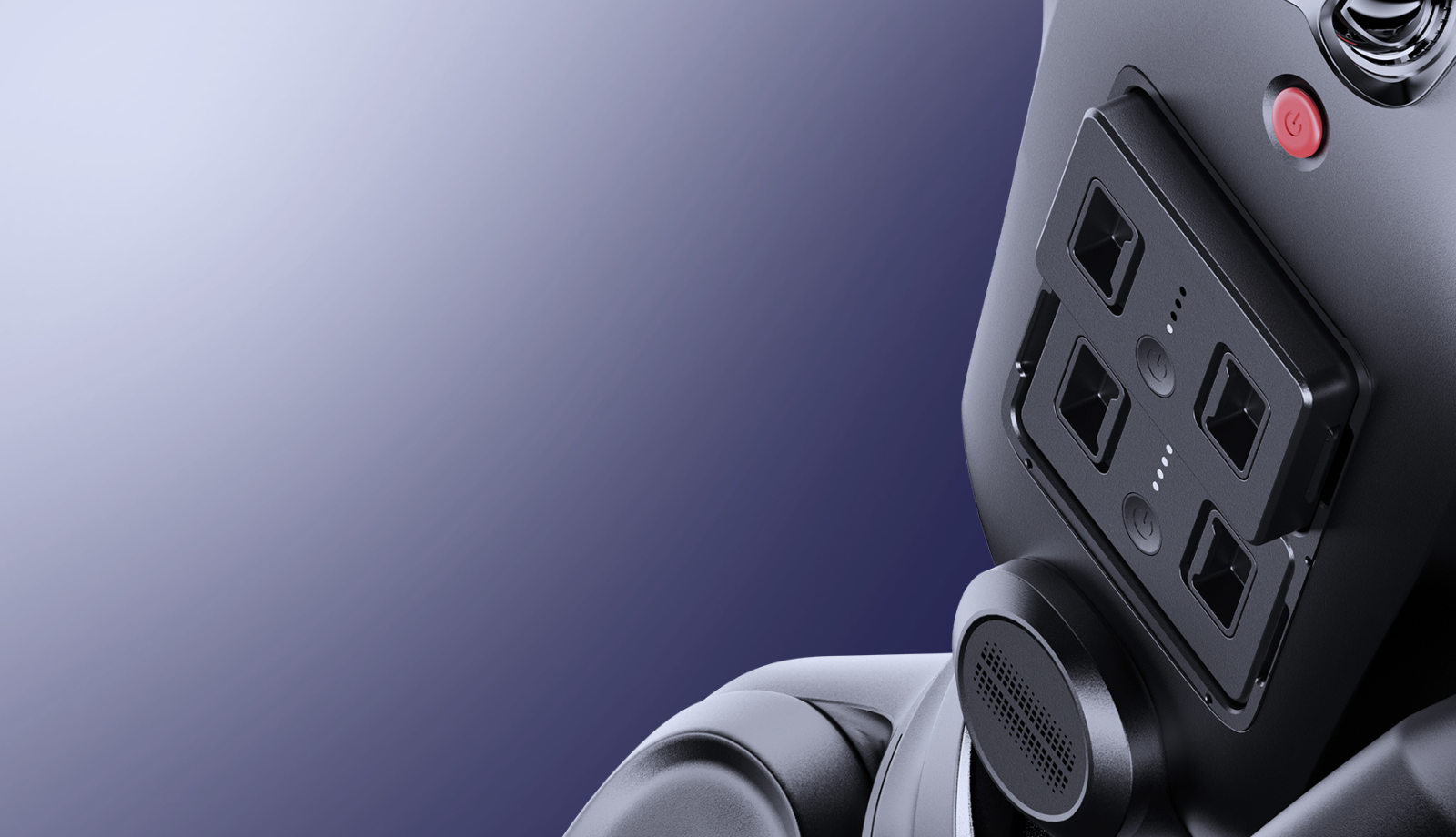

- Hot-swappable dual-battery system for zero-downtime, round-the-clock operation
Video
Specifications
| Dimensions (H × W × D) | 1800 × 554 × 280 mm |
| Arm span | 158 cm |
| Leg length | 92 cm |
| Total weight | 70 kg |
| Total active DOF | 31 |
| Head active DOF | 2 |
| Arm active DOF | 7 per arm |
| Waist active DOF | 3 |
| Leg active DOF | 6 per leg |
| Peak joint torque | ≥350 N·m |
| Maximum joint torque | ≥400 N·m |
| Chassis materials | Aerospace-grade lightweight aluminium alloy, titanium alloy, high-strength engineering plastics |
| Cooling system | Air cooling |
| Power supply | Dual battery system |
| Battery type | Hot-swappable (zero-downtime replacement) |
| Battery capacity | 18 Ah |
| Base compute | 8-core high-performance CPU (X1: locked · X1 Ultra: locked base plus unlocked developer CPU) |
| AI compute | X1: NVIDIA Orin NX · X1 Ultra: up to NVIDIA Jetson AGX Thor (2070 TOPS) |
| Wireless | Wi-Fi 6 and Bluetooth 5.2 |
| Perception sensors | Stereo camera module, head RGB-D camera, waist RGB-D camera, LiDAR (optional) |
| Secondary development | X1: not supported · X1 Ultra: supported |
Applications

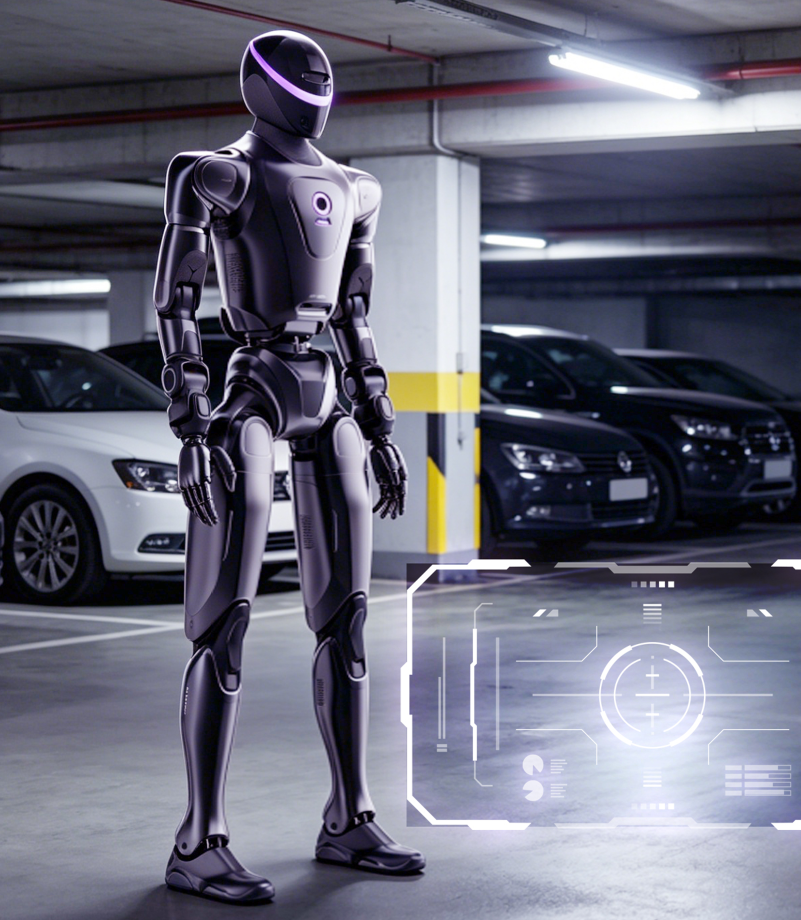

Patrol and security — all-weather autonomous inspection and emergency response
Public security and integrated police collaboration

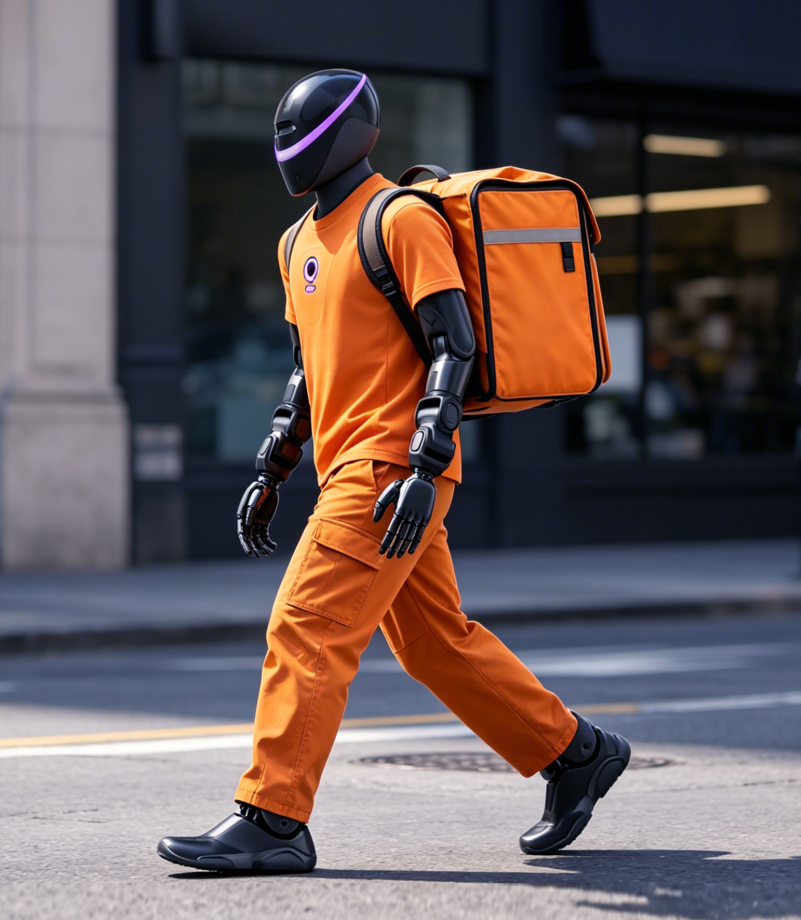

Smart logistics — autonomous delivery, visual sorting and terrain-adaptive navigation
Guided tours and narration in museums, galleries and exhibition centres
Events and entertainment — performances and synchronised formation shows
Research and education — embodied AI, algorithm validation, practical training

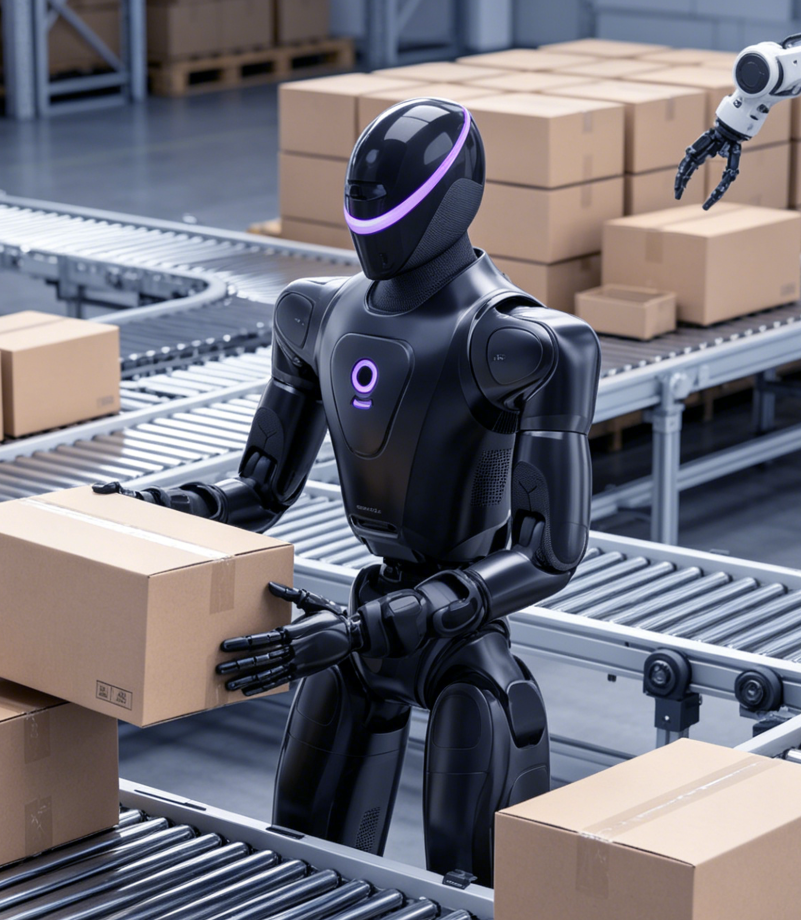

Pan-industrial material transfer, bulky item handling and warehouse operations
