Diana 3
Robot PlatformsCollaborative robots / cobotsAvailable Now
Agile RobotsOfficial distributor

Diana 3

Compact 3 kg force-control collaborative robot — iF Design Award 2023

Contact for pricing

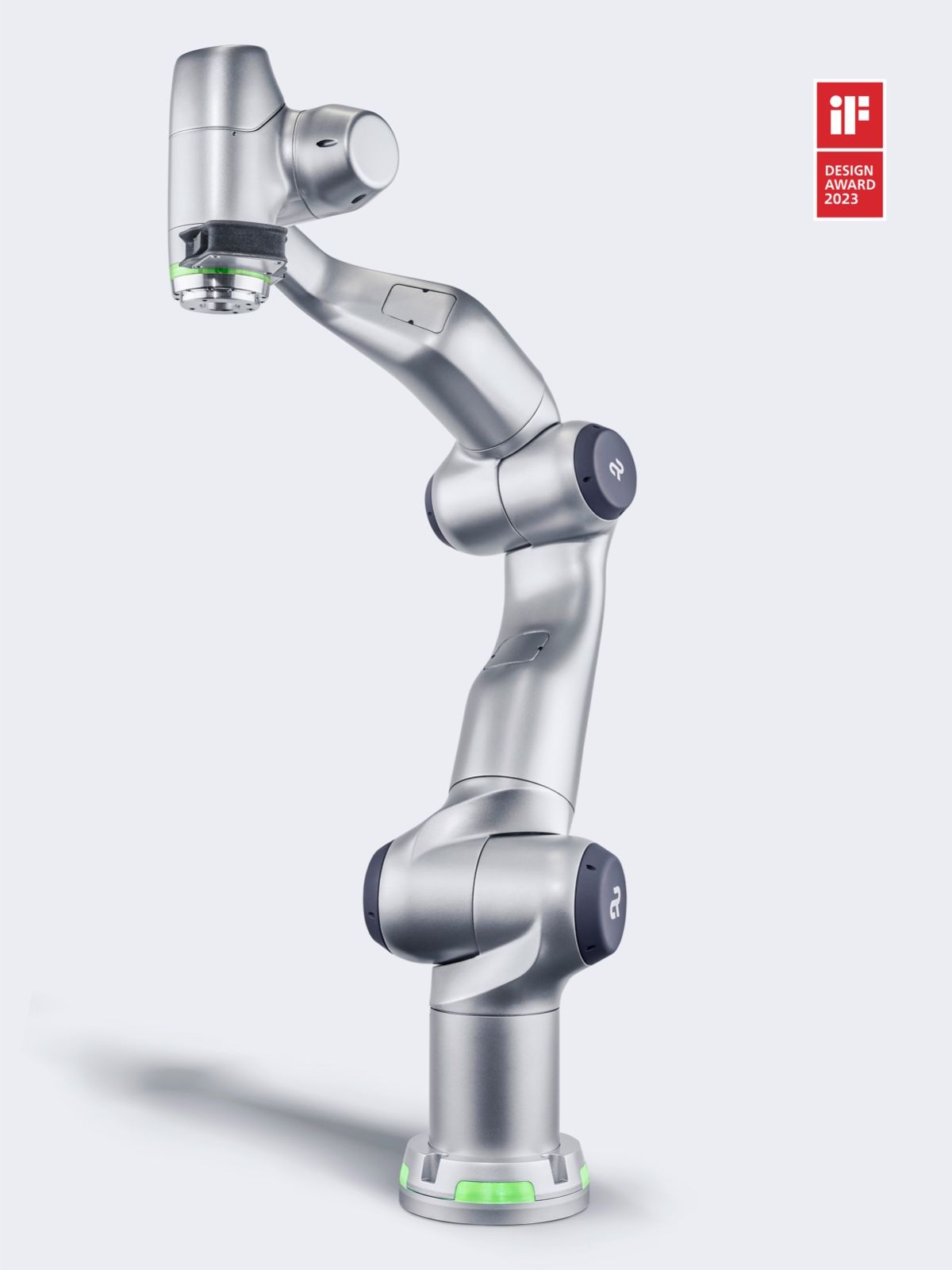

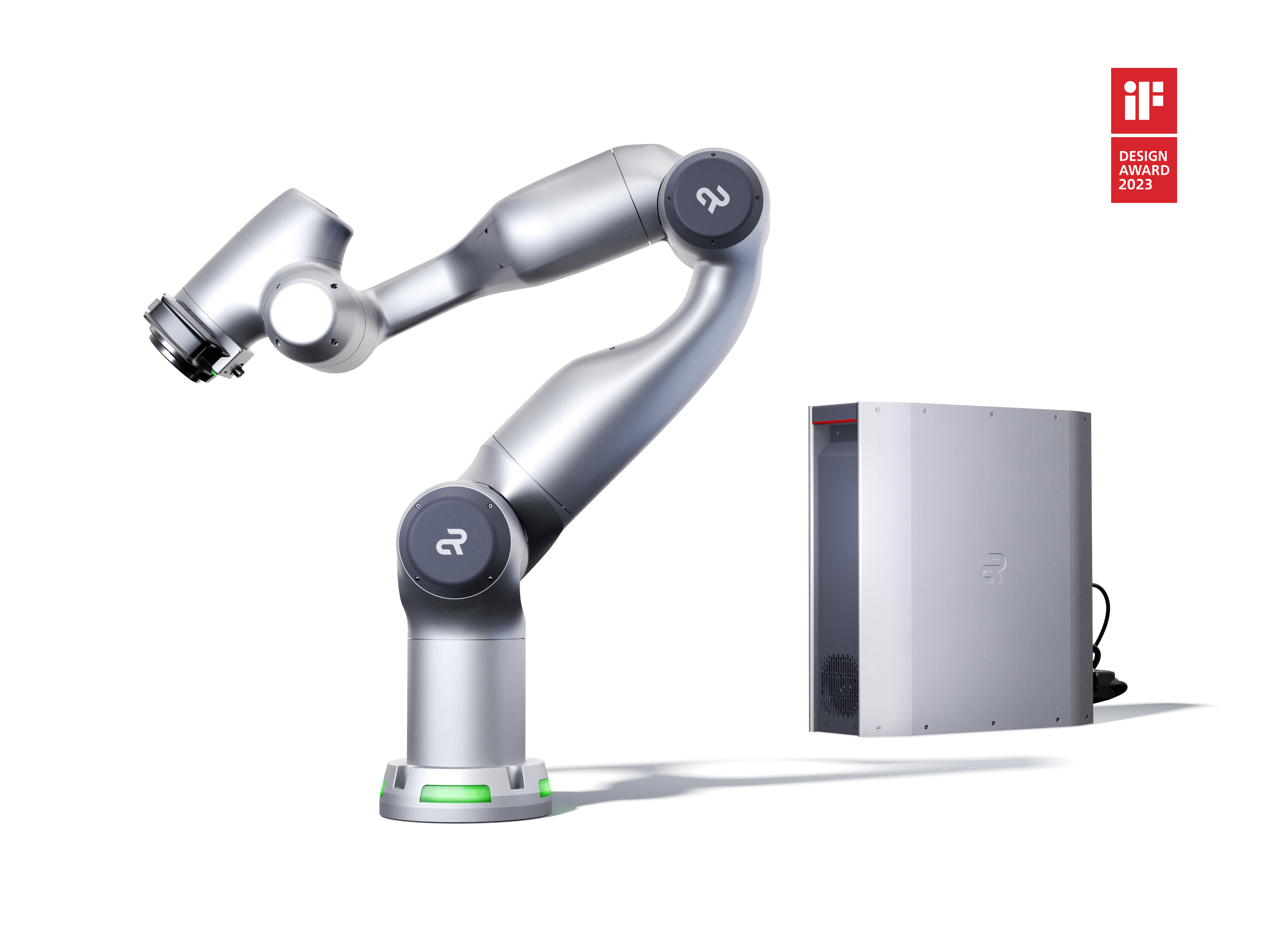

The Diana 3 is a 3 kg high-precision intelligent force-control robot developed by Agile Robots, derived from the award-winning Diana 7 platform. With 7 degrees of freedom, 7 joints equipped with high-precision torque sensors, and an anthropomorphic design, Diana 3 delivers sensitive force control and collision detection in a compact footprint. The seven-DOF redundant design plus null-space control enable flexible obstacle avoidance in confined workspaces. Winner of the 2023 iF Design Award.

Key Features

  • High-precision torque sensors integrated in every joint
  • Highly sensitive force control and collision detection
  • Seven-DOF redundant design for enhanced motion flexibility
  • Null-space control technology for obstacle avoidance in confined workspaces
  • Customizable button for free configuration of peripherals (grippers, cameras)

Specifications

Payload3 kg
Max. reach772 mm
Degrees of freedom7
Repeatability±0.05 mm
Force control accuracy0.5 N
TCP max. speed2.3 m/s
Robot weight19 kg
Joint speed175°/s (J1–4), 305°/s (J5–7)
MountingAny angle
IP ratingIP54
Power consumption200 W average, 400 W peak
Operating temperature0–50 °C
Design awardiF Design Award 2023

Applications

Light assembly
Precision handling
Laboratory automation
Education and research
Force-control manipulation
Inspection tasks
