Surface finishing

Diana 7

Seven torque-sensing joints keep contact force constant across curved body panels.

7Axes
7kgPayload
923mmReach
±0.05mmRepeatability
0.5NForce control
PL dSafety · Cat. 3
Use cases
  • Primer sanding — automotive paint shop
  • Polishing — constant-force finishing
  • Multi-arm cells — four arms on one body
Back to Products
Diana 7
Robot PlatformsCollaborative robots / cobotsNewAvailable Now
Agile RobotsOfficial distributor

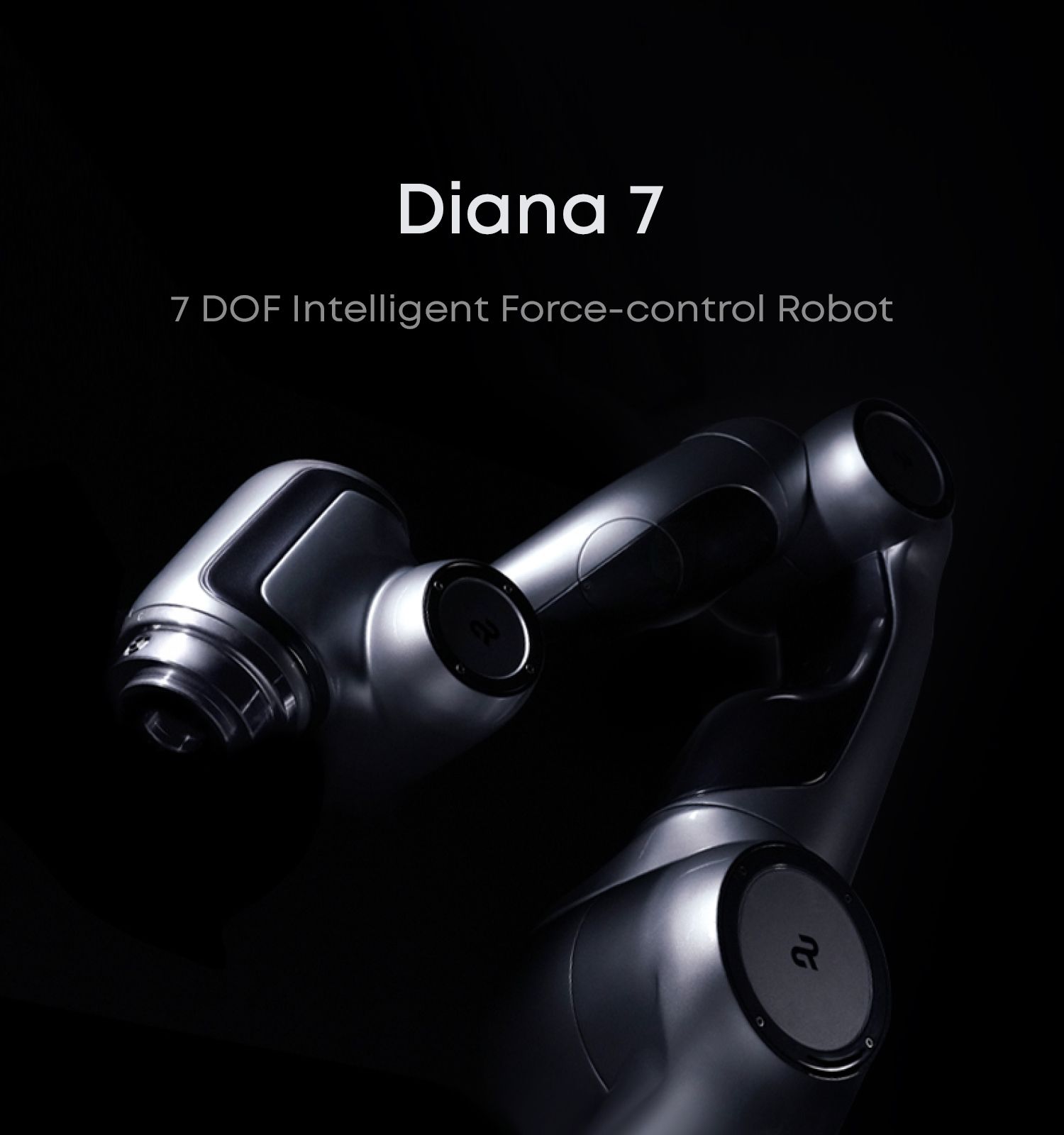

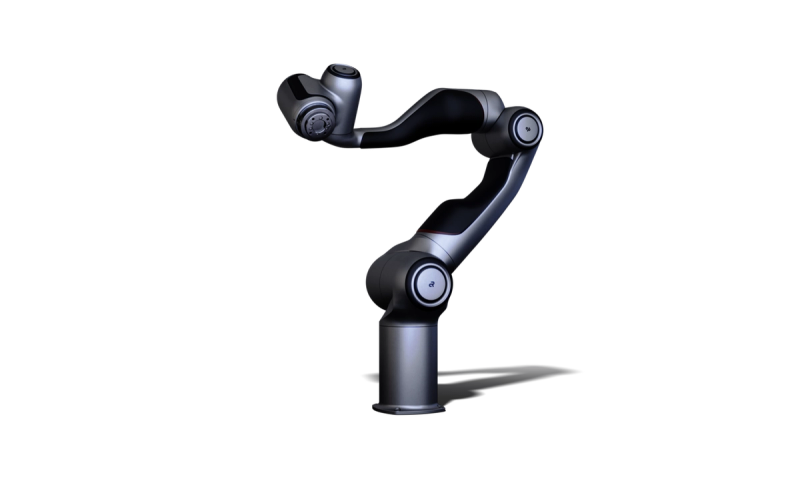

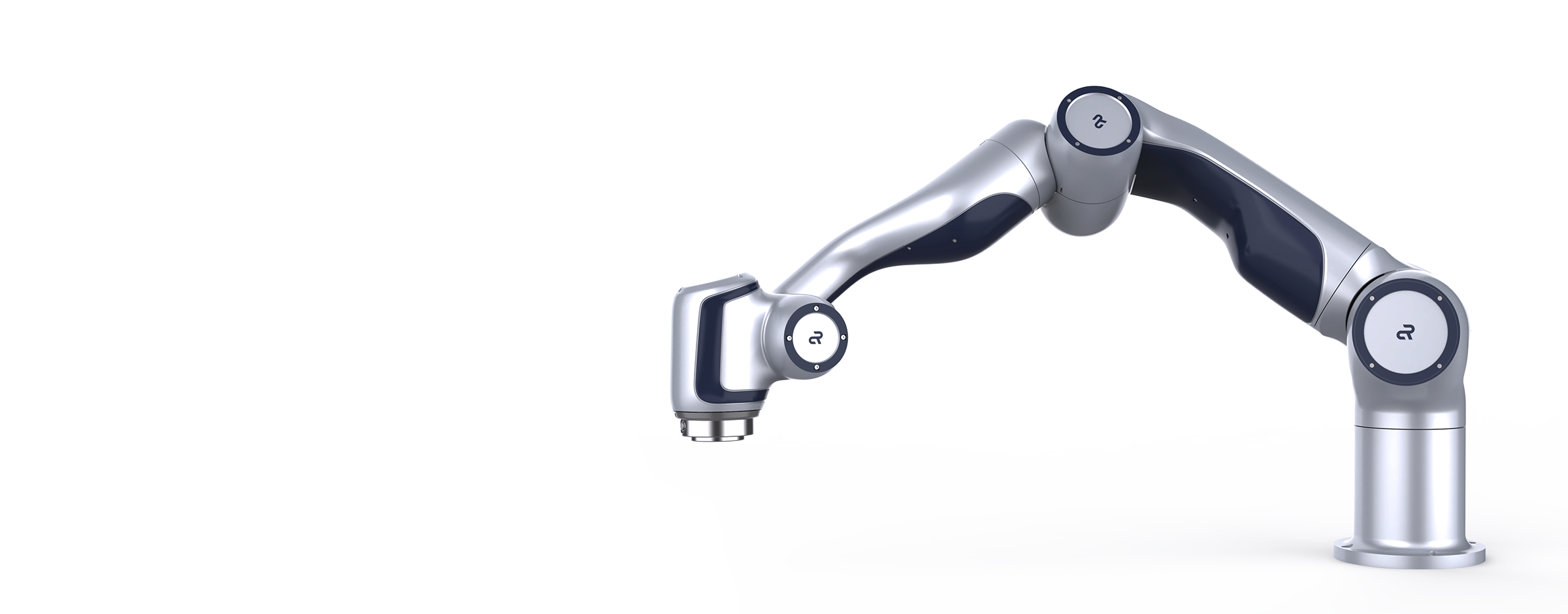

Diana 7

World-leading force-control technology — 7 kg, 7 DOF

Contact for pricing

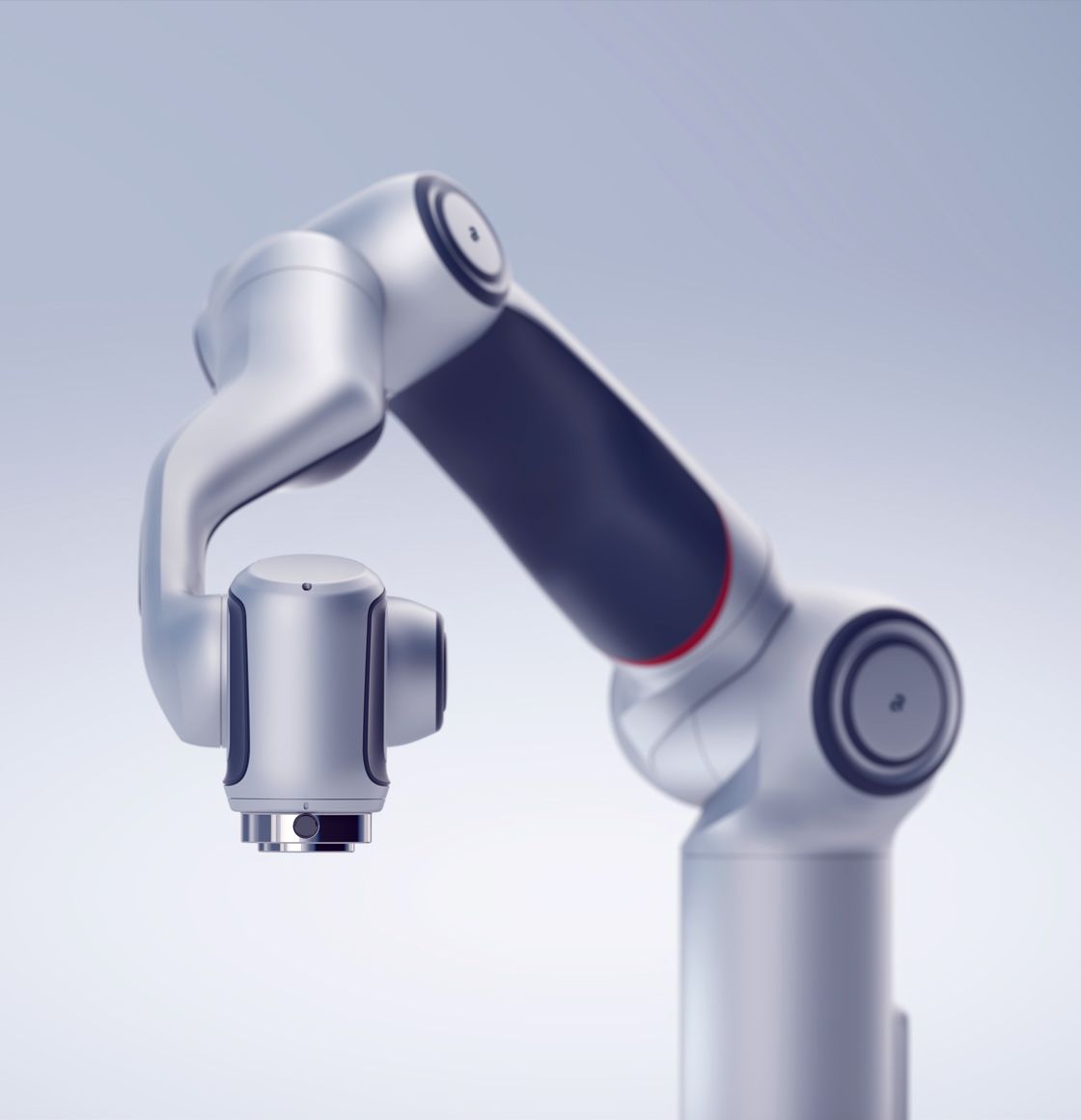

Diana 7 is the flagship high-precision intelligent force-controlled robot developed by Agile Robots. With integrated high-accuracy torque sensors in each of its 7 joints, Diana 7 delivers responsive force control and sensitive collision detection. The 7-DOF redundant design provides exceptional motion flexibility, while null-space control technology enables operation in confined workspaces. Diana 7 fully supports the Franka Control Interface (FCI) for real-time control at 1 kHz, making it equally suited for industrial automation and cutting-edge research.

Key Features

  • High-accuracy torque sensors integrated in all 7 joints
  • Highly sensitive force sensing and collision detection
  • Flexible impedance control mode
  • Null-space control technology for obstacle avoidance
  • 7-DOF redundant kinematics for motion flexibility

Video

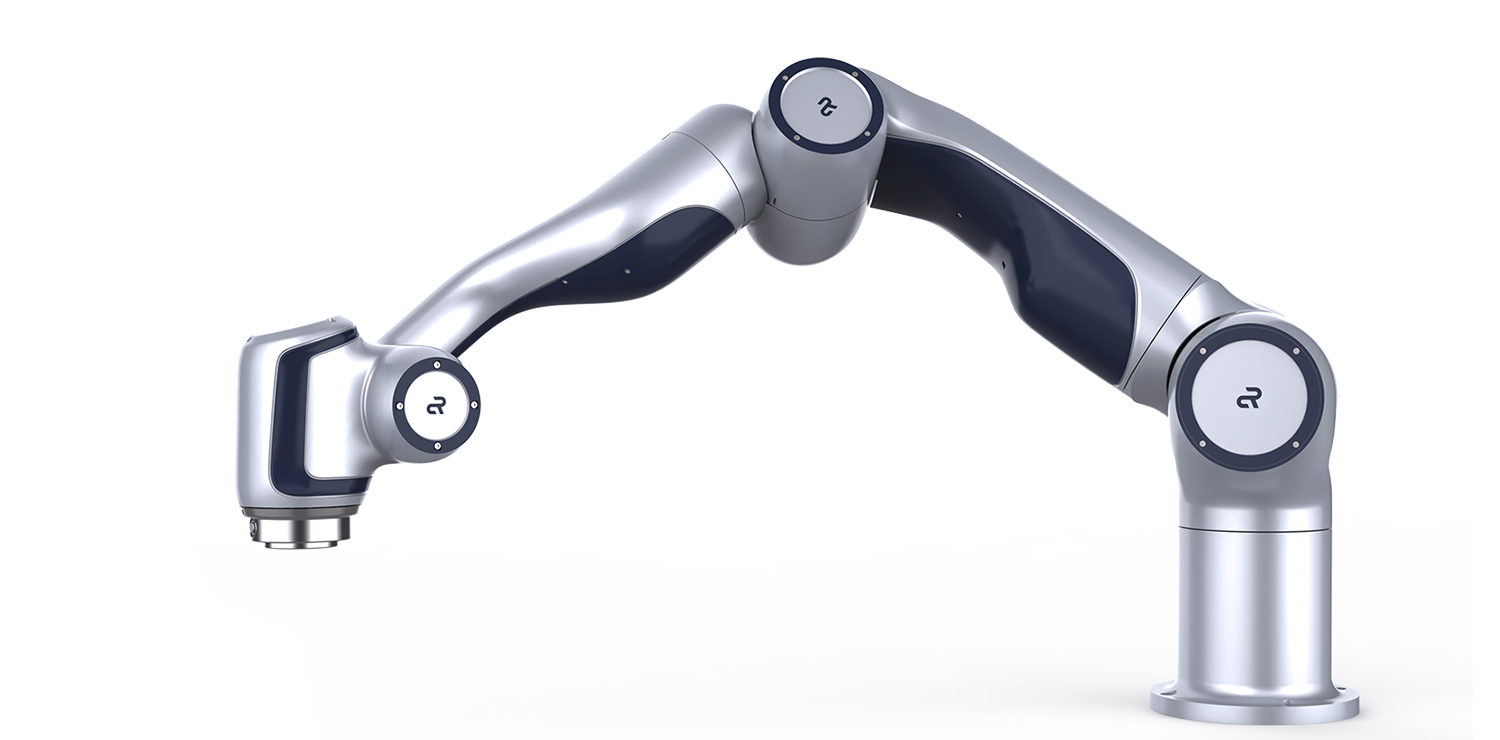

Specifications

Payload7 kg
Working radius923 mm
Degrees of freedom7
Repeatability±0.05 mm
Force control accuracy0.5 N
TCP max. speed2.4 m/s
Robot weight28 kg
Base diameterØ 190 mm
Joint speed180°/s (J1–2), 210°/s (J3–4), 270°/s (J5–7)
IP ratingIP50
End tool connectorISO 9409
ProgrammingC++, Python, Lua; Franka Control Interface (FCI)
SafetyEN ISO 13849-1 PL d / Cat. 3, EN ISO 10218-1
Operating conditions0–50 °C, up to 90 % RH non-condensing
Control box483 × 377 × 192 mm, 16 kg, 110–240 V AC
I/O16 DI/16 DO, 2 AI/2 AO, 24 V / 2.5 A

Applications

Research and motion control development
Pick-and-place operations
Consumer electronics manufacturing
Automotive assembly
Intelligent medical solutions
Force-controlled assembly
Imitation learning
