Prototype · mobile dual-arm

Mobile FR3 Duo

FR3 Duo on an omnidirectional base: teleoperation, data collection and policy execution beyond the fixed workcell.

855mmReach per arm
3kgPayload per arm
125kgBase payload
1.5m/sMax. speed
7Cameras
1kHzControl (FCI)
Use cases
  • Mobile manipulation — whole-body coordination
  • Embodied AI — datasets & policy learning
  • Pre-integrated — base, arms & software
Back to Products
Mobile FR3 Duo
Robot PlatformsNewContact for Availability
Franka Robotics
Franka Robotics
Official distributor

Mobile FR3 Duo

Dual-arm manipulation meets omnidirectional mobility

Contact for pricing

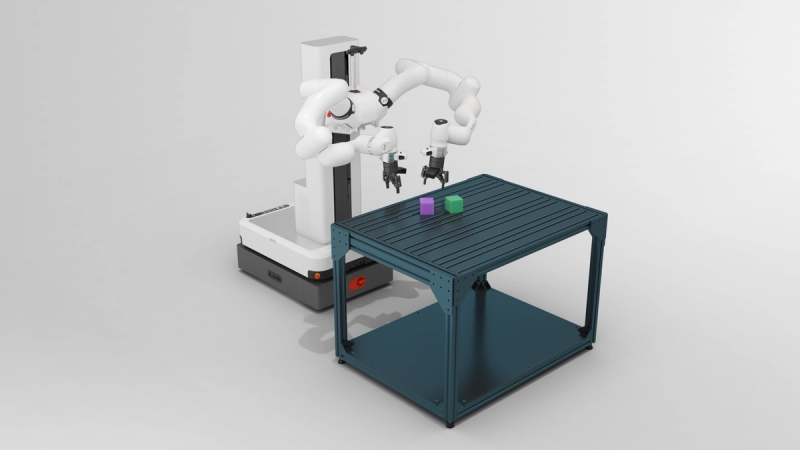

Mobile FR3 Duo extends the FR3 Duo reference platform into mobile environments by integrating it with the Tactile Mobile Robot (TMR). It combines dual-arm manipulation, rich perception, and omnidirectional mobility into a single physical AI system – enabling data collection and policy execution beyond fixed workcells. The product image shows the complete system including the Vision & Manipulation Kit (grippers and cameras), which is a separate item. Every component is listed under Scope of delivery below.

Key Features

  • FR3 robots with optimized dual-arm kinematics on omnidirectional base
  • Pre-integrated mechanical, electrical, and software interfaces
  • Advanced perception combining TMR sensor suite and FR3 tactile sensitivity
  • Standardized mounting points for extensibility
  • Franka Control Interface (FCI) for real-time, low-level control at 1 kHz

Video

Specifications

Base Dimensions800 × 583 × 370 mm
Reach per Arm855 mm
Base Payload125 kg
Payload per Arm3 kg
Max Speed1.5 m/s
Arm Torque Sensors14
LiDARs2
Cameras7
IMU1
Onboard ComputeNVIDIA Jetson AGX Orin
ConnectivityWi-Fi, Ethernet, USB, Bluetooth
Control Frequency1 kHz via FCI

Description

Scope of delivery

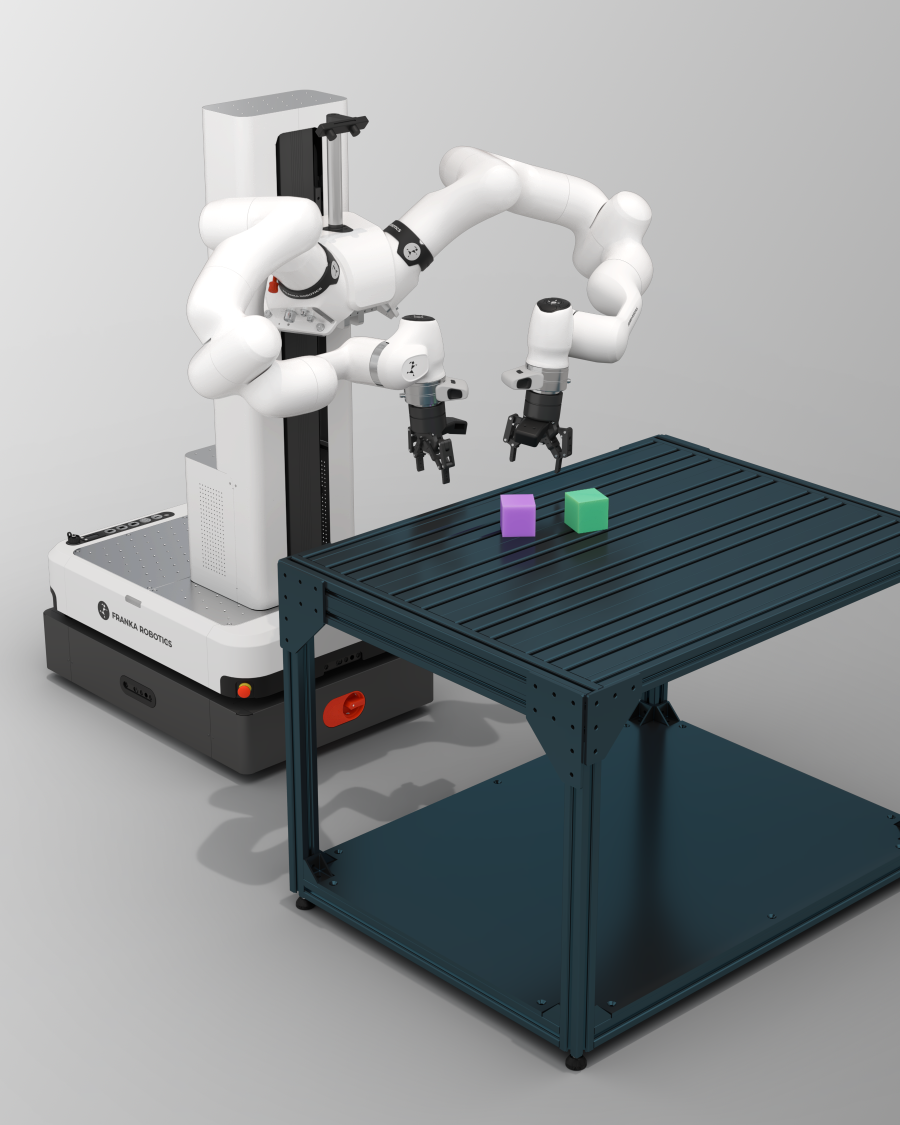

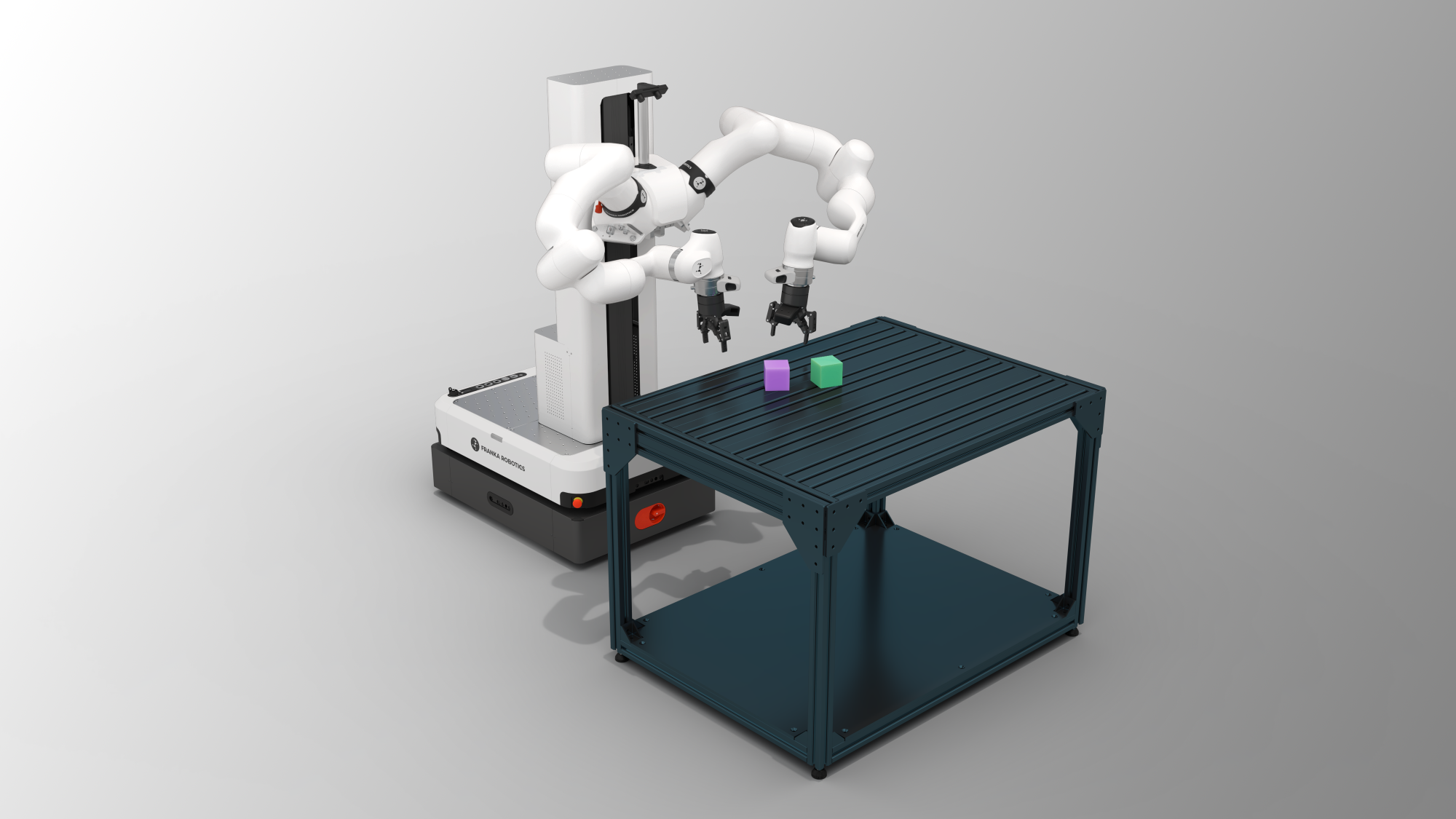

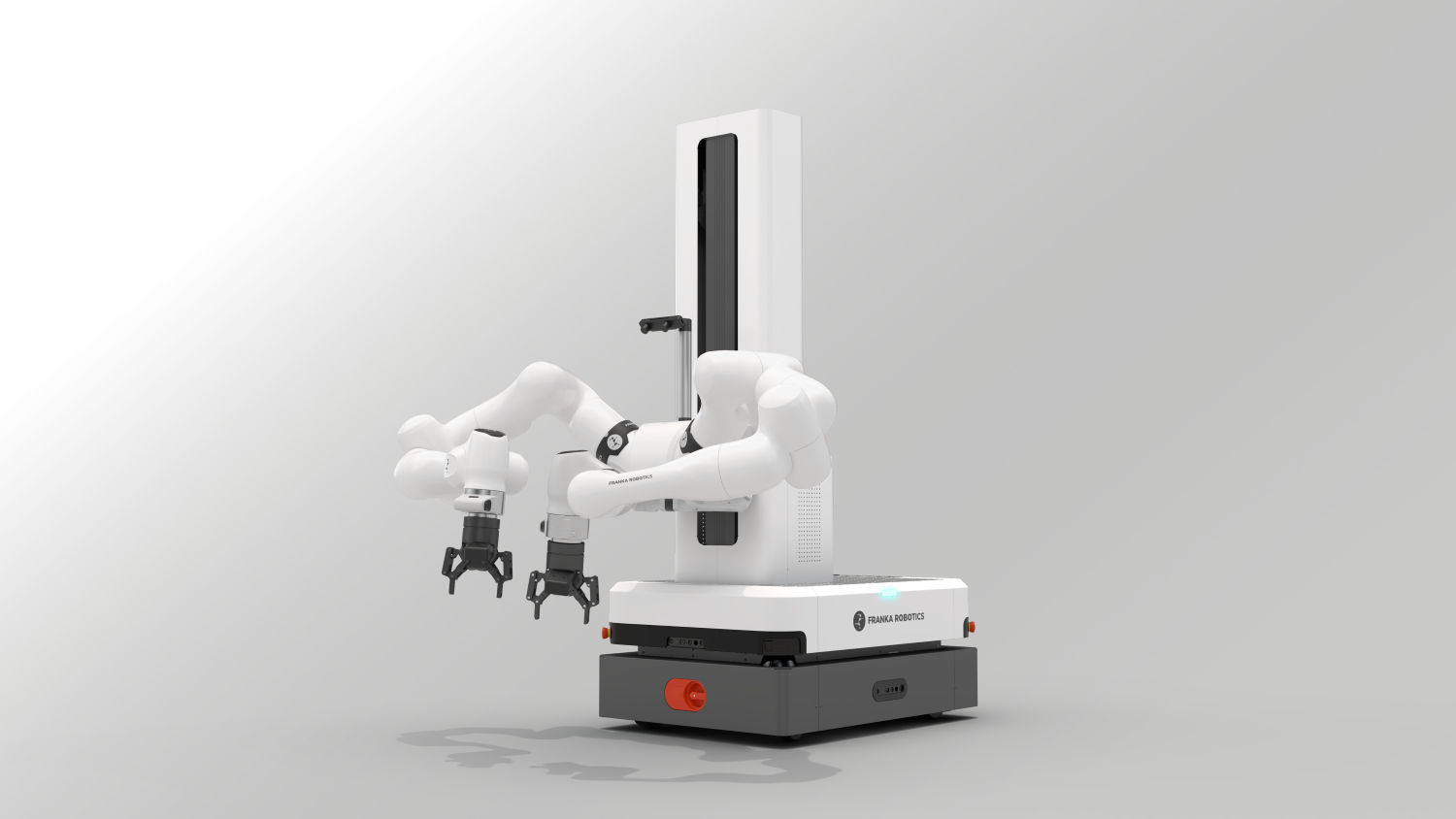

The product image shows Mobile FR3 Duo as a complete system: the base system plus the Vision & Manipulation Kit. The kit and Franka GELLO Duo are separate items with their own article numbers, so please name every item you need when you request a quote.

Base system – Mobile FR3 Duo (Franka art. no. 10074892)

  • Tactile Mobile Robot (TMR): holonomic, omnidirectional base with 2 × Sick nanoScan3 LiDAR, 4 × Intel RealSense D455 cameras, IMU and NVIDIA Jetson AGX Orin (64 GB)
  • Franka Spine lifting column with control, 827 mm stroke (art. no. 10075115)
  • FR3 Duo: 2 × Franka Research 3 arms, 7 joints each with a torque sensor in every joint, including the dual-arm mounting kit
  • Franka Control Interface 3 (FCI, 1 kHz) for both arms (2 × art. no. 20000020)
  • TMR charging station for inductive and cable charging (art. no. 10075116)
  • 2 emergency stop buttons on the base plus 1 FORT wireless emergency stop

Vision & Manipulation Kit (art. no. 10075117) – shown in the image

  • 2 × Robotiq 2F-85 parallel grippers with a shared power supply
  • 2 × Intel RealSense D405 wrist cameras with mounts and cabling
  • 1 × Stereolabs ZED Mini stereo camera on the Franka head bracket

Franka GELLO Duo (art. no. 10075295) – not shown

  • 2 × GELLO teleoperation arms, a scaled-down kinematic copy of FR3 Duo, with table stand
  • 2 × OpenRB-150 controllers, each connected via USB
  • Franka Labs data-recording software (open source, Apache 2.0): records in MCAP, exports to LeRobot v2.1

The work table and objects in the image are for illustration only and are not included.

Applications

Teleoperation in dynamic environments
Policy execution for real-world manipulation tasks
Whole-body coordination research
Mobile manipulation studies
Physical AI research
Service robotics research
