Thor 12
Robot PlatformsCollaborative robots / cobotsAvailable Now
Agile RobotsOfficial distributor

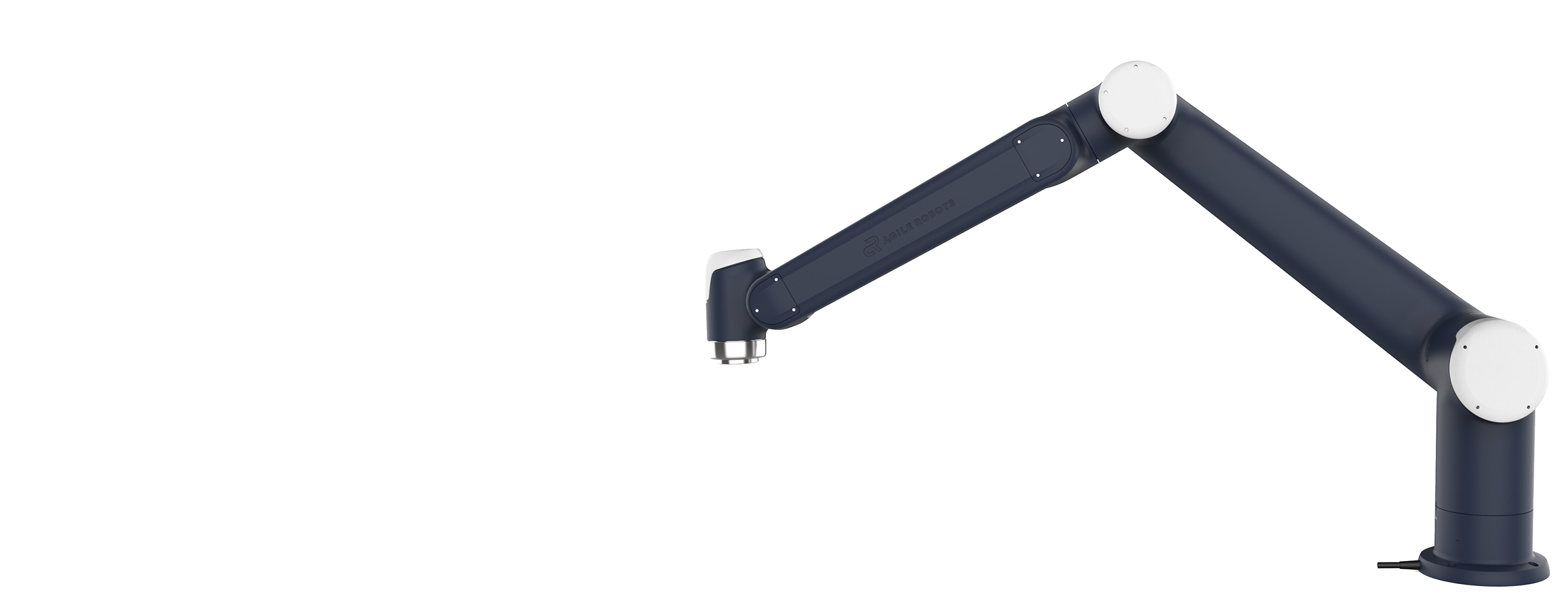

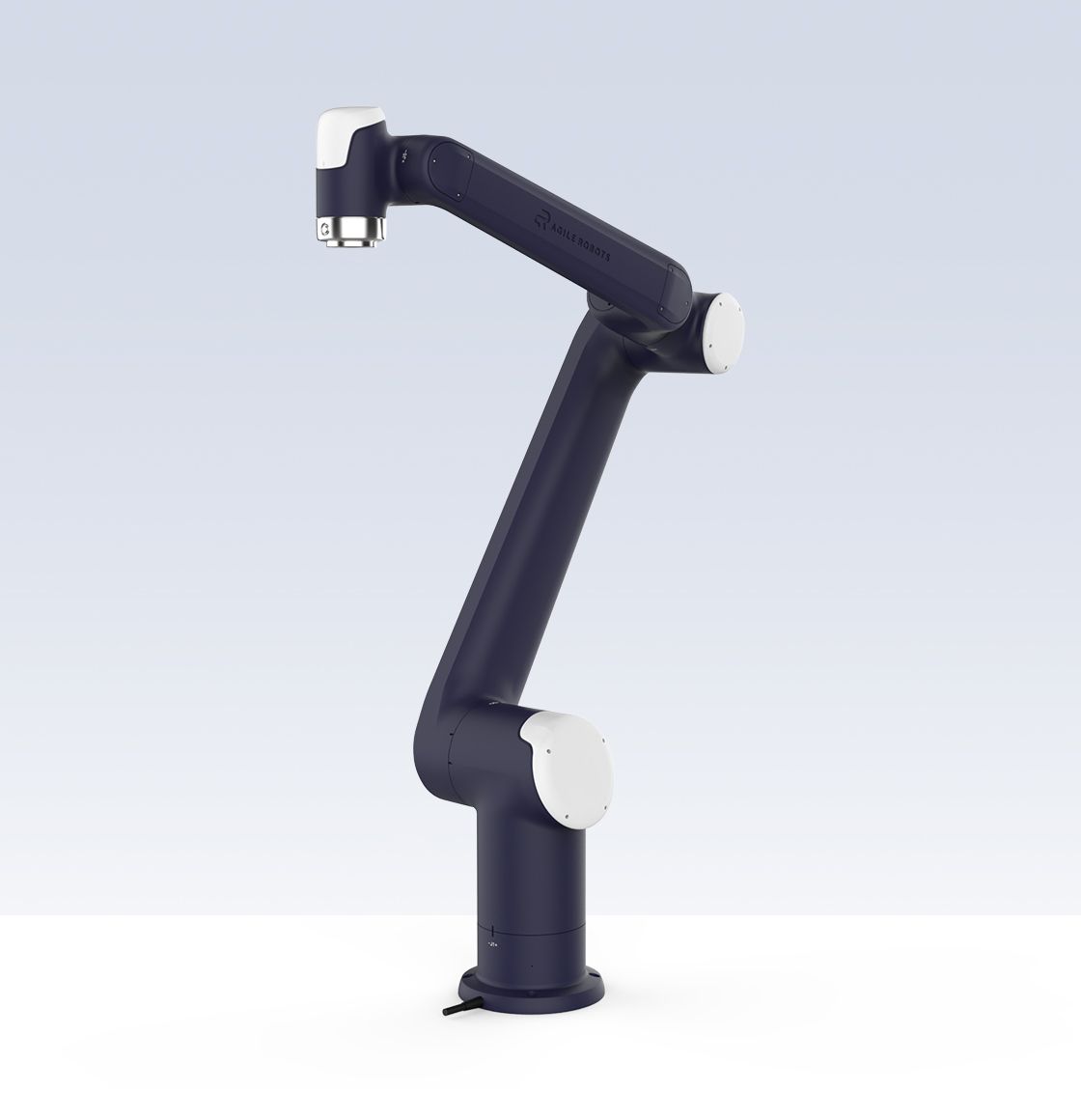

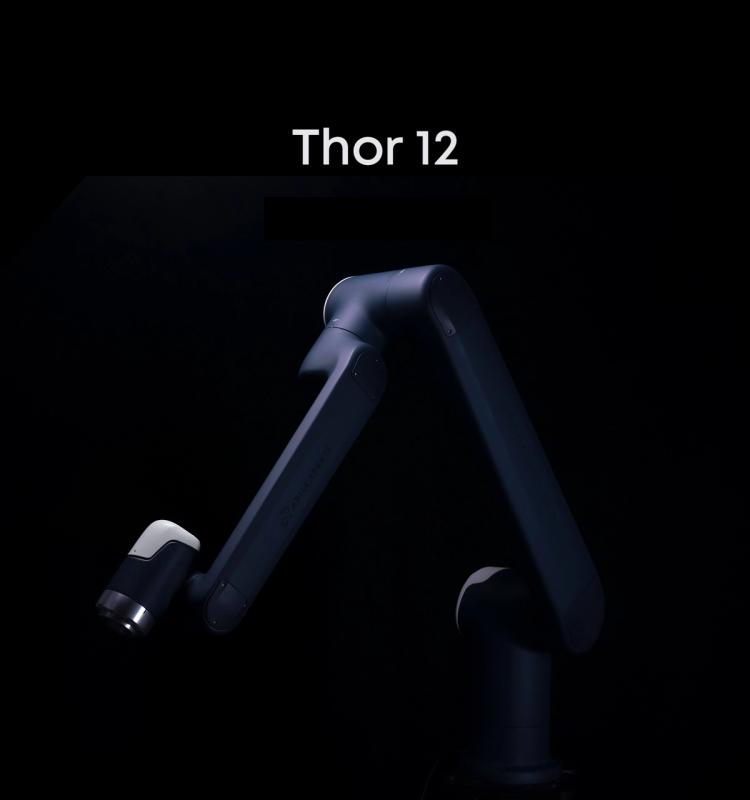

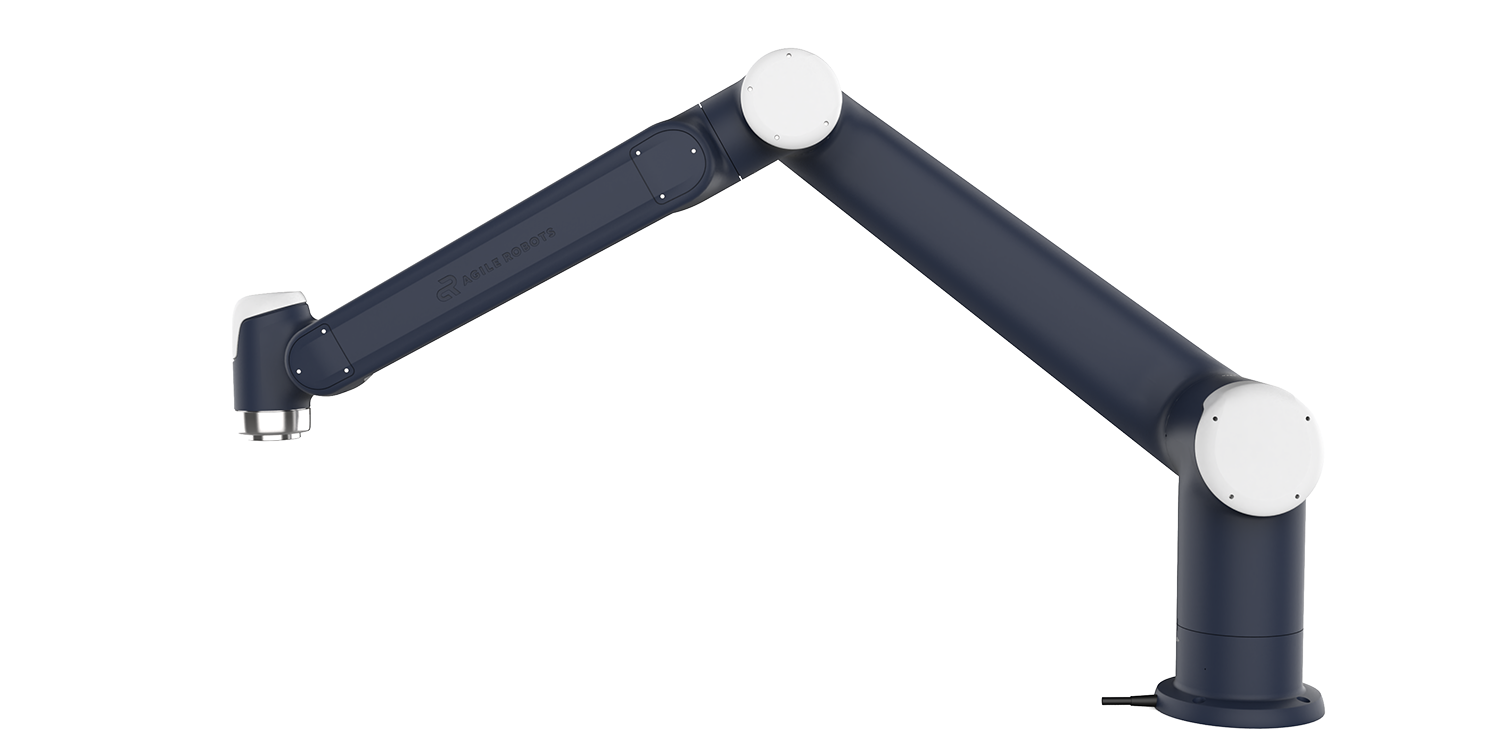

Thor 12

12 kg payload, 1300 mm reach high-precision cobot

Contact for pricing

Thor 12 is a collaborative industrial robot from Agile Robots that combines a 12 kg payload with an extended 1300 mm reach in a compact footprint. With IP54 protection, ±0.05 mm repeatability, joint speeds up to 440°/s and a TCP top speed of 3.7 m/s, Thor 12 is designed for assembly, loading/unloading, handling and palletizing. Quick-change end flanges and dragging buttons enable fast tool changes and safe human-equipment interaction.

Key Features

  • Extended 1300 mm reach with compact footprint
  • 12 kg payload for medium-load scenarios
  • Quick-change end flanges with dragging buttons
  • Built-in electrical connections at flange
  • High-precision motion control for efficient operation

Specifications

Payload12 kg
Working radius1,300 mm
Degrees of freedom6
Repeatability±0.05 mm
TCP max. speed3.7 m/s
Robot weight35 kg
Base diameterØ 206 mm
Joint speed150–215°/s (J1–3), 325–440°/s (J4–6)
IP ratingIP54
Operating temperature0–50 °C
Tool I/O2 DI, 2 DO, 2 AI, 12/24 V, Modbus RTU
ControllerCB-FS-3.2T-0.6KW, 483 × 377 × 192 mm, 16 kg
I/O16 DI/16 DO/2 AI/2 AO, expandable to 48 DI/48 DO
ProgrammingGraphical, script and API

Applications

Assembly
Material handling
Palletizing
Loading and unloading
Machine tending
Heavy-payload manipulation
