Thor 20
Robot PlatformsCollaborative robots / cobotsComing Soon
Agile RobotsOfficial distributor

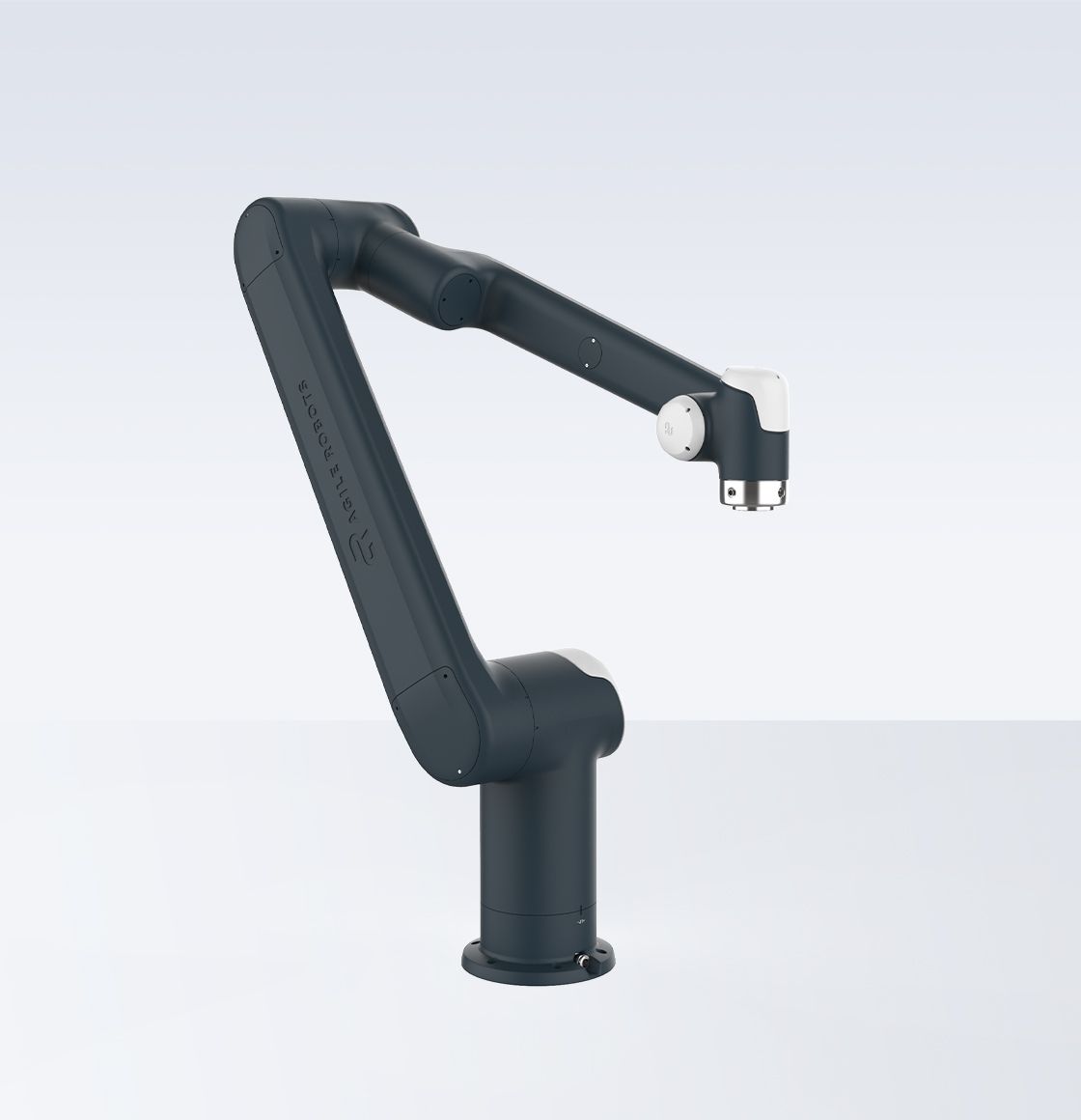

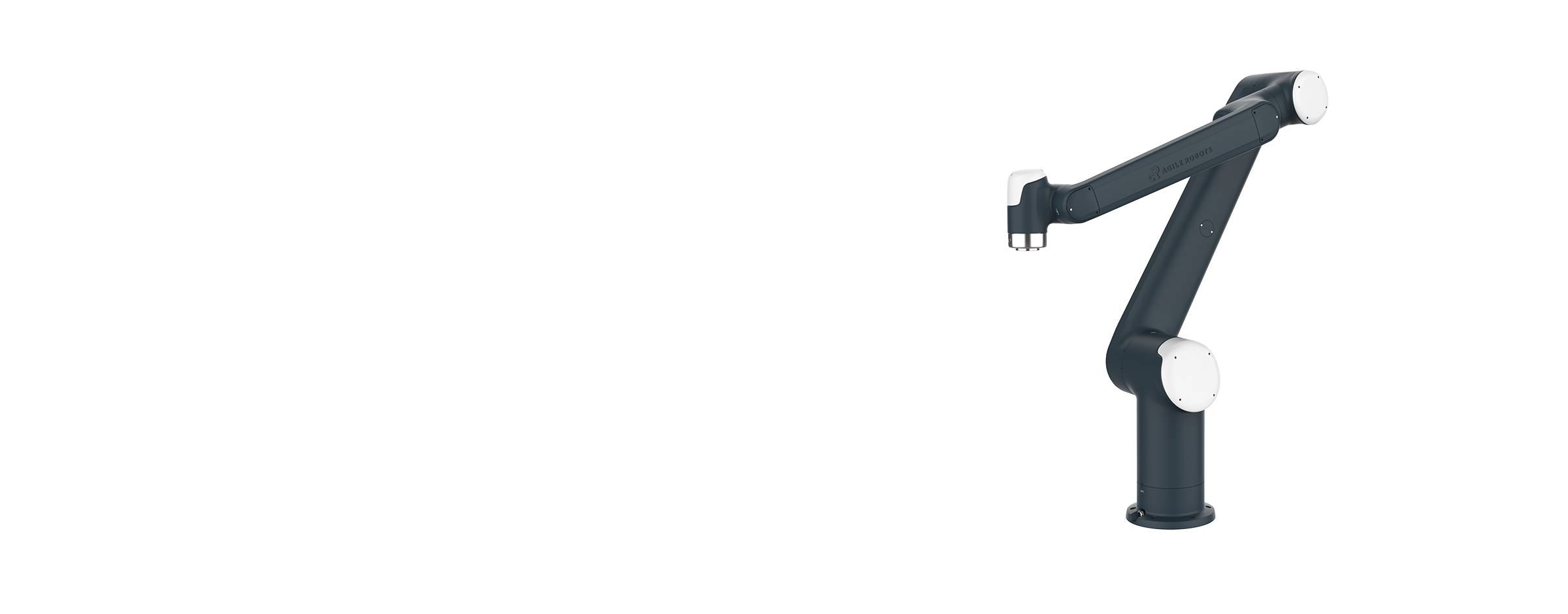

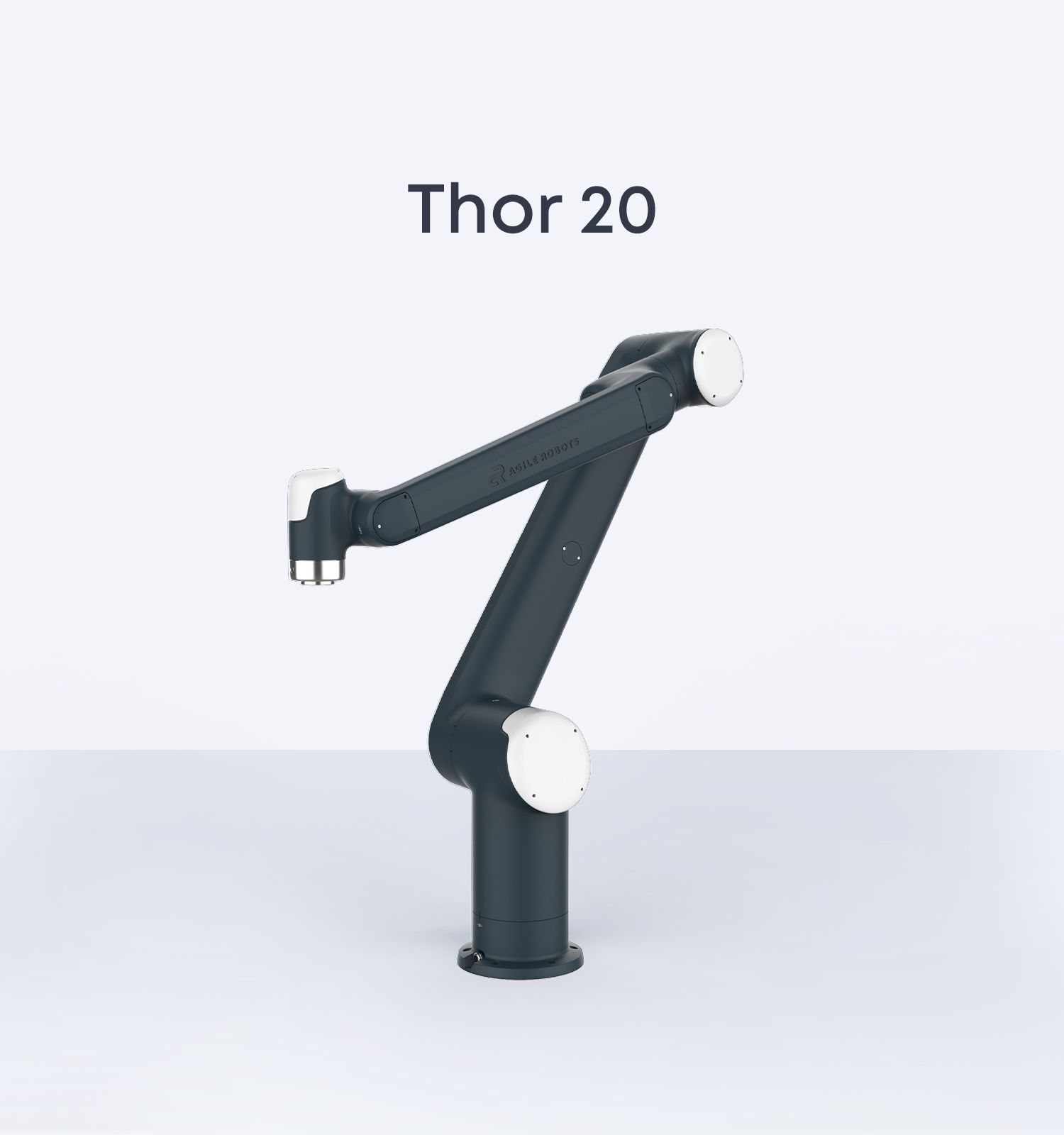

Thor 20

Heavy-payload 20 kg cobot with 1700 mm reach

Contact for pricing

Thor 20 is Agile Robots' heavy-payload collaborative robot, combining a 20 kg load capacity with a 1700 mm working radius. With IP54 protection, ±0.1 mm repeatability and TCP speeds up to 2.8 m/s, it is engineered for demanding assembly, handling, palletizing and loading/unloading operations. Built-in collision detection and graphical, script and API programming enable safe and flexible deployment.

Key Features

  • 20 kg payload for heavy-load applications
  • Extended 1700 mm working radius
  • User-friendly end-effector interface for quick tool connection
  • Built-in collision detection
  • IP54 protection rating

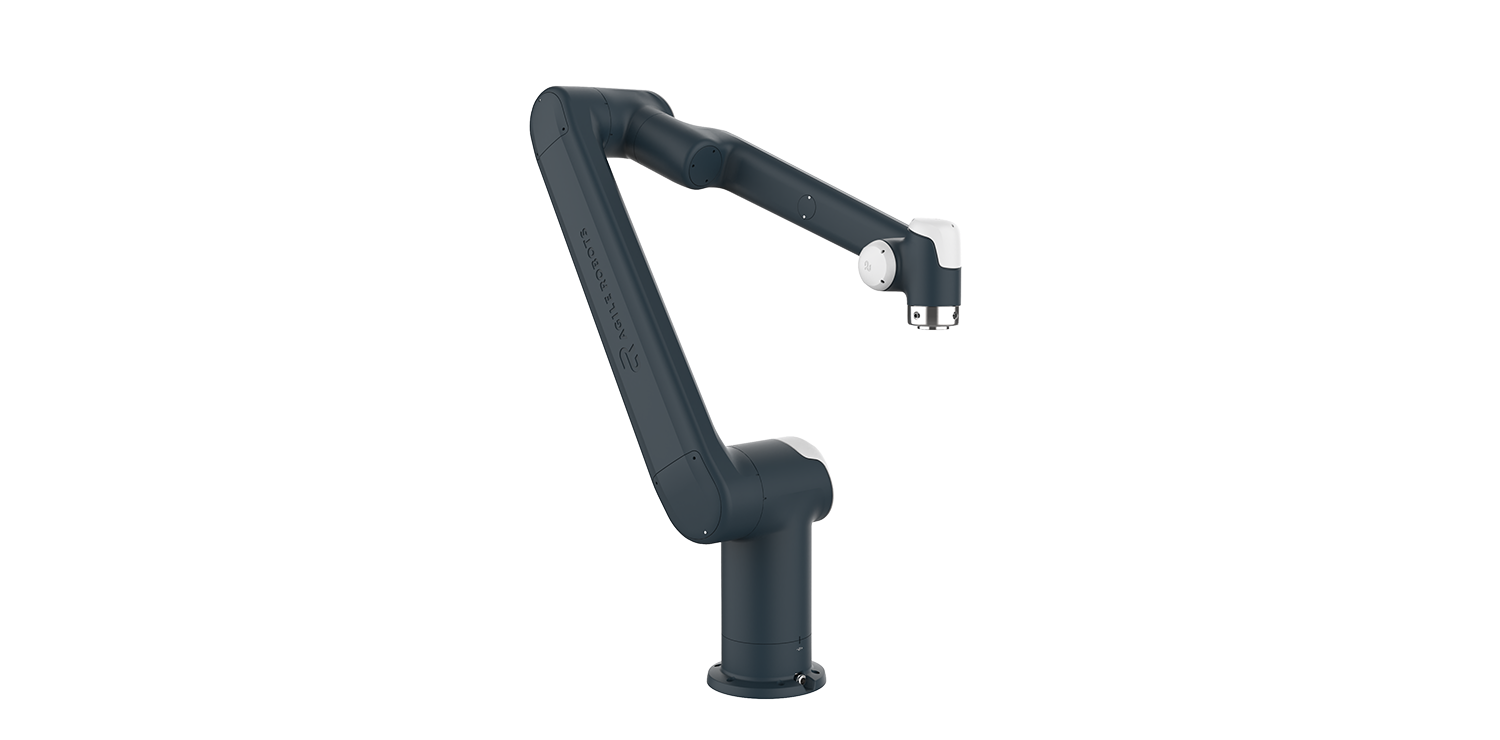

Specifications

Payload20 kg
Working radius1,700 mm
Degrees of freedom6
Repeatability±0.1 mm
TCP max. speed2.8 m/s
Robot weight72 kg
Base diameterØ 252.5 mm
Joint speed120–150°/s (J1–3), 210°/s (J4–6)
IP ratingIP54 (wrist)
Operating temperature0–50 °C
Tool I/O2 DI, 2 DO, 2 AI, 12/24 V, Modbus RTU
ControllerCB-FS-3.2T-1KW, 483 × 377 × 192 mm, 16 kg
ProgrammingGraphical, script and API
AvailabilityComing soon (per Agile Robots)

Applications

Heavy-load assembly
Material handling
Palletizing
Loading and unloading
Machine tending
Automotive component handling
